This section instructs you to access the system address book of the Abilis LDAP server and keep synchronised the voip users.
Add and active the LDAP resource as explained in the chapter: "activating the LDAP resource".
Create a LDAP account.
[21:44:12] ABILIS_CPX:a user:test act:yes pwd:test ldap:yes COMMAND EXECUTED
If anonymous authentication is required, the guest user must be active and its LDAP parameter enabled.
[21:44:12] ABILIS_CPX:s user:guest act:yes ldap:yes COMMAND EXECUTED
![[Note]](../images/note.png) | Note |
|---|---|
By default the anonymous user has access just to the "published" address book, so use the command s ldap rights id:3 user:anonymous grants:r to allow anonymous to access the system address book. You may also want to limit the access of LDAP client to the LAN then use the command s p res:ldap ip-src:192.168.0.0/16 and execute the initialization command init res:ldap. |
Check the users to be kept synchronised, in this example let's created a few users.
[00:18:51] ABILIS_CPX:a user:frank iax:yes iax-number:2222 COMMAND EXECUTED [00:18:56] ABILIS_CPX:a user:anne sip:yes sip-number:3333 COMMAND EXECUTED [00:19:29] ABILIS_CPX:a user:george ctip:101 COMMAND EXECUTED [00:23:56] ABILIS_CPX:a cticl clus:myclus COMMAND EXECUTED [00:24:05] ABILIS_CPX:s cticl clus:myclus num:7777 COMMAND EXECUTED [00:24:08] ABILIS_CPX:a user:jack clus:myclus COMMAND EXECUTED
Enable LDAP-USER-SYNC in each user you want to keep synchronised in the system address book and specify the phone interface via the LDAP-NUMBER user parameter.
[00:18:51] ABILIS_CPX:s user:frank addrbook-sync:ldap addrbook-number:ctiiax COMMAND EXECUTED [00:18:56] ABILIS_CPX:s user:anne addrbook-sync:yes addrbook-number:ctisip COMMAND EXECUTED [00:19:29] ABILIS_CPX:s user:george addrbook-sync:yes addrbook-number:ctip COMMAND EXECUTED [00:24:08] ABILIS_CPX:s user:jack addrbook-sync:yes addrbook-number:clus COMMAND EXECUTED
You may set USER-SYNC:YES in LDAP resource port but you should not use this way in most cases. You may errouneusly synchronize users you want to keep hidden. Moreover if this parameter is switched from YES to NO you risk to lost part of saved data (non synchronised attributes of synchronised contacts).
You may also modify, via macros, the number provided to LDAP via LDAP-NUM parameter in CTIIAX/CTISIP/CTIP/CLUSTER interfaces.
[21:47:12] ABILIS_CPX:s user:frank iax-addrbook-num:02'IAX-NUMBER' COMMAND EXECUTED [21:47:33] ABILIS_CPX:s user:anne sip-addrbook-num:'SIP-NUMBER.s2' COMMAND EXECUTED [21:48:44] ABILIS_CPX:s ctip:101 addrbook-num:02'NUM' COMMAND EXECUTED [21:48:55] ABILIS_CPX:s cticl clus:myclus addrbook-num:'NUM'123 COMMAND EXECUTED [21:49:00] ABILIS_CPX:init res:ctisys INIT CTI SYSTEM IN PROGRESS, THIS MAY TAKE FEW MINUTES... COMMAND EXECUTE
| Note |
|---|---|
Any modfication to CTI ports or Clusters need the CTI system initialization via the command init res:ctisys. |
Hide the address books you are not interested in via the LDAP rights table. The following commands allow just the system address book will be visible to the user named "test".
[21:49:08] ABILIS_CPX:a ldap rights id:1 user:test grants:-r COMMAND EXECUTED [21:49:28] ABILIS_CPX:a ldap rights id:2 user:test grants:-r COMMAND EXECUTED
The user may now access LDAP server via LDAP client or via Abilis web interface. To access web pages provide the LDAP accont with additional HTTP rights.
[21:49:08] ABILIS_CPX:s user:test http:yes COMMAND EXECUTED [21:49:35] ABILIS_CPX:a http rights id:2 user:test file:r dir:l COMMAND EXECUTED
To know how to read/modify/create/remove contacts via the web interface or via a LDAP client check the chapter "handling contacts".
Advanced VoIP phones include a LDAP client able to translate the number of an incoming call to the corresponding contact name. The task of this section is to configure the Abilis LDAP server to provide its contacts to VoIP phones.
Add and active the LDAP resource as explained in the chapter: "activating the LDAP resource".
You may also want to limit the access of LDAP client to the LAN (i.e. 192.168.X.X) via the ipsrc and ipsrclist parameters.
[20:09:28] ABILIS_CPX: s p ldap ipsrc:192.168.0.0
COMMAND EXECUTED
[20:11:12] ABILIS_CPX:list create ldap_allow ir
COMMAND EXECUTED
[20:11:20] ABILIS_CPX:a list:ldap_allow 192.168.0.0:192.168.0.254
COMMAND EXECUTED
[20:14:26] ABILIS_CPX:s p res:ldap ipsrclist:ldap_allow
COMMAND EXECUTED
[20:15:01] ABILIS_CPX:d p res:ldap
RES:Ldap ----------------------------------------------------------------------
Run DESCR:Lightweight_Directory_Access_protocol
LOG:NO mxps:2048 TOS:0-N
- LDAP Server ----------------------------------------------------------
SRV-ACT:YES srv-sesnum:10 tcp-locport:389
IPSRC:192.168.000.000 IPSRCLIST:ldap_allow
SRV-SIZE-LIMIT:NO SRV-TIME-LIMIT:NO SRV-DT:60
max-entries:1000 DN-FIRST-ATTR:cn
root:dc=abilis,dc=net
wdir:C:\APP\LDAP\
- LDAP Client ----------------------------------------------------------
CLI-ACT:YES cli-sesnum:5 MAX-REFERRALS:10
CLI-SIZE-LIMIT:NO CLI-TIME-LIMIT:NO CLI-DT:60
CLI-REM-ACCOUNT-PERMANENT:YES CLI-MAX-TOUT:60
CLI-PERMANENT-RETRY-DELAY:60![[Caution]](../images/caution.png) | Caution |
|---|---|
To activate the changes made on the upper case parameters, execute the initialization command init res:ldap; while to activate the changes made on the lowercase parameters a save conf and an Abilis restart are required (i.e. with warm start command). |
Create a LDAP account.
[21:44:12] ABILIS_CPX:a user:test act:yes pwd:test ldap:yes COMMAND EXECUTED
The user automatically gains the reading right over all the main address books.
If the anonymous authentication is required, the guest user must be active and its LDAP parameter enabled.
[21:44:12] ABILIS_CPX:s user:guest act:yes ldap:yes COMMAND EXECUTED
The guest by default has not the right to access the system address book and the contacts address book so let's grant it.
[13:15:27] ABILIS_CPX:s ldap rights id:1 user:guest grants:r COMMAND EXECUTED [13:15:27] ABILIS_CPX:s ldap rights id:3 user:guest grants:r COMMAND EXECUTED
Let's configure a Snom 300 VoIP phone to display the LDAP attribute "common name" instead of displaying just the calling number.
Via the web interface of the SNOM open the Advanced section page and set the following parameters:
| Parameter | Value |
| LDAP name filter | (&(telephoneNumber=*)(sn=%)) |
| LDAP number filter | (&(telephoneNumber=%)(sn=*)) |
| Server Address | <IP address or FQDN of Abilis> |
| Port | 389 |
| Base | dc=addressBooks,dc=abilis,dc=net |
| Username | <The name of an Abilis user allowed to LDAP (LDAP:YES)> |
| Password | <The password of an Abilis user allowed to LDAP (LDAP:YES)> |
| LDAP name attributes | cn sn displayName |
| LDAP number attributes | mobile telephoneNumber ipPhone |
| LDAP display name | %cn |
| Note |
|---|---|
Changing the "Base" parameter you may change the scope of contacts, i.e. to access only the contacts address book set "Base" as addressBook=contacts,dc=addressBooks,dc=abilis,dc=net. |

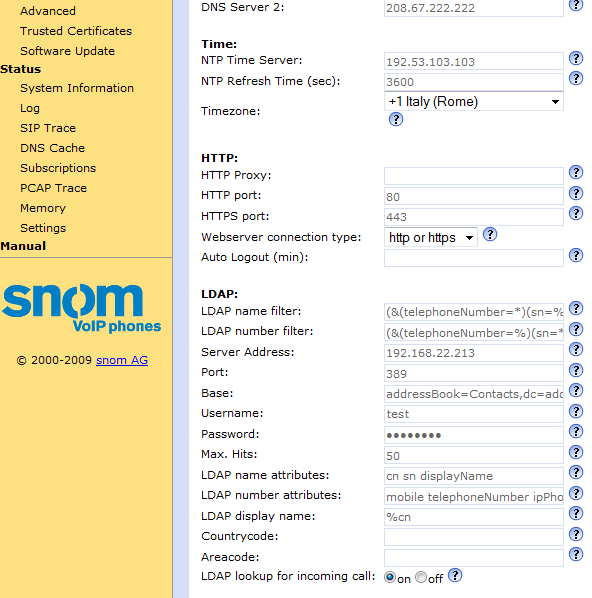

The SNOM web interface should look in this way:

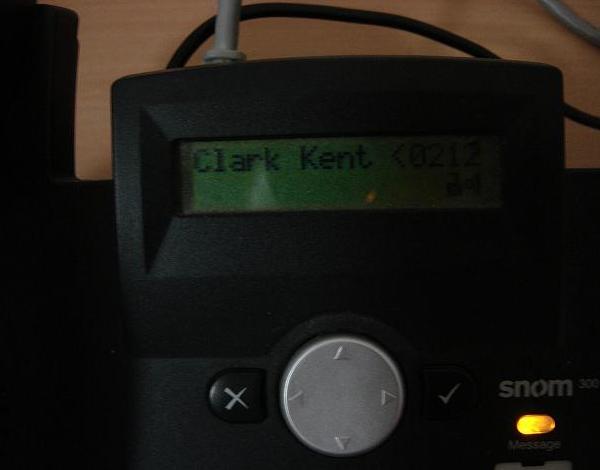

Now the phone will display the Common Name provided by the Abilis LDAP server instead of any known calling number.
To know how to read/modify/create/remove contacts via the web interface or via a LDAP client check the chapter "handling contacts".
The goal of this section is to configure a mail client (Thunderbird) to enable autocompletion when editing the recipient of a message.
Add and active the LDAP resource as explained in the chapter: "activating the LDAP resource".
You may also want to limit the access of LDAP clients to the LAN (i.e. 192.168.X.X) via the ipsrc and ipsrclist parameters.
[20:09:28] ABILIS_CPX: s p ldap ipsrc:192.168.0.0
COMMAND EXECUTED
[20:11:12] ABILIS_CPX:list create ldap_allow ir
COMMAND EXECUTED
[20:11:20] ABILIS_CPX:a list:ldap_allow 192.168.0.0:192.168.0.254
COMMAND EXECUTED
[20:14:26] ABILIS_CPX:s p res:ldap ipsrclist:ldap_allow
COMMAND EXECUTED
[20:15:01] ABILIS_CPX:d p res:ldap
RES:Ldap ----------------------------------------------------------------------
Run DESCR:Lightweight_Directory_Access_protocol
LOG:NO mxps:2048 TOS:0-N
- LDAP Server ----------------------------------------------------------
SRV-ACT:YES srv-sesnum:10 tcp-locport:389
IPSRC:192.168.000.000 IPSRCLIST:ldap_allow
SRV-SIZE-LIMIT:NO SRV-TIME-LIMIT:NO SRV-DT:60
max-entries:1000 DN-FIRST-ATTR:cn
root:dc=abilis,dc=net
wdir:C:\APP\LDAP\
- LDAP Client ----------------------------------------------------------
CLI-ACT:YES cli-sesnum:5 MAX-REFERRALS:10
CLI-SIZE-LIMIT:NO CLI-TIME-LIMIT:NO CLI-DT:60
CLI-REM-ACCOUNT-PERMANENT:YES CLI-MAX-TOUT:60
CLI-PERMANENT-RETRY-DELAY:60 | Caution |
|---|---|
To activate the changes made on the upper case parameters, execute the initialization command init res:ldap; while to activate the changes made on the lowercase parameters a save conf and an Abilis restart are required (i.e. with warm start command). |
Thunderbird doesn't support LDAP user authentication so let's enable the anonymous user in Abilis (guest) and set its LDAP right to allow him to access the contacts address book.
[17:50:23] ABILIS:s user:guest act:yes ldap:yes
COMMAND EXECUTED
[17:51:16] ABILIS_CPX:d user
- Not Saved (SAVE CONF) -------------------------------------------------------
USER: PWD: ACT: CTIP: CLUS: PPP: FTP: HTTP: MAIL: IAX: SIP: LDAP:
--------------------------------+--------------+-------------------------------
admin *** YES # # YES YES YES YES NO NO YES
guest YES # # NO NO NO NO NO NO YES
[17:51:24] ABILIS:s ldap rights id:1 user:anonymous grants:r
COMMAND EXECUTED
[17:52:07] ABILIS:d ldap rights
- Not Saved (SAVE CONF) -------------------------------------------------------
-------------------------------------------------------------------------------
ID: ADDRESSBOOK:
USER: GRANTS:
-------------------------------------------------------------------------------
1 contacts
admin rwcd
anonymous r---
-------------------------------------------------------------------------------
2 published
admin rwcd
anonymous r---
-------------------------------------------------------------------------------
3 system
admin rw--
anonymous ----

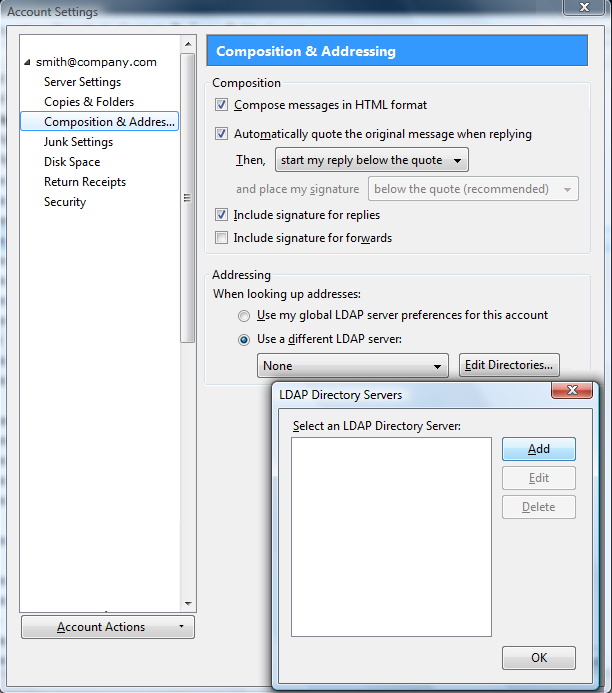

-------------------------------------------------------------------------------In Thunderbird open the Account Settings dialog (select Tools ->Account Settings) then select your account and click the Composition & Addressing tab, finally add a new LDAP dir.
Click the Add button and use the following parameters.
| Parameter | Value |
| Name | <doesn't matter> |
| Hostname | <IP address or FQDN of Abilis> |
| Base DN | addressBook=Contacts,dc=addressBooks,dc=abilis,dc=net |
| Port number | 389 |
| Note |
|---|---|
Changing the "Base DN" parameter you may change the scope of contacts, i.e. to access all main address books set base as dc=addressBooks,dc=abilis,dc=net and execute the command s ldap rights id:3 user:anonymous grants:r |

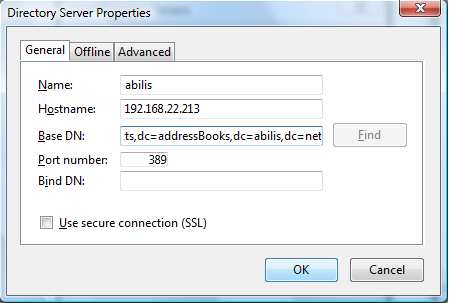

The dialog should appear in this way:
Set the Abilis LDAP server as the current LDAP for this account.

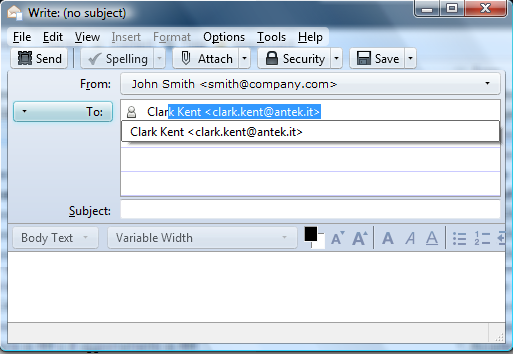

Then you may try to write a mail using the "common name" of a person and Thunderbird will autocomplete the mail address for you. In the example the "Contacts" address book include the contact of "Clark Kent", the tooltip will appear as soon as you write a few chars.
To know how to read/modify/create/remove contacts via the web interface or via a LDAP client check the chapter "handling contacts".
| |  | |
