3.7. UMTS-BOX connection

In this section it is shown how to connect an UMTS Box to the Abilis CPX.

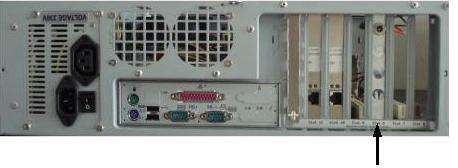

  1. Insert the bracket with power connectors in the Abilis base unit.

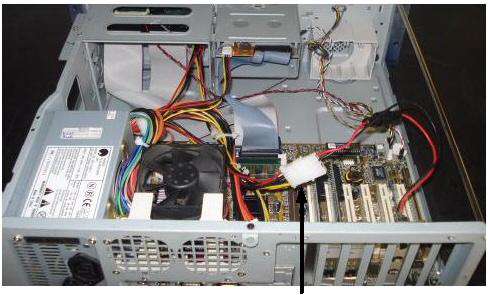

  2. Connect the internal power connector of the bracket to the power supply connector.

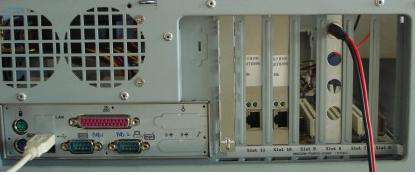

  3. Connect the USB cable to the USB port and the power supply cable to the bracket.

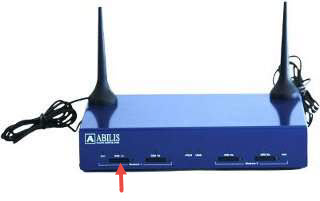

  4. Insert one or two SIM cards in the UMTS Box.

  5. Connect the USB cable to the USB port and the power supply cable to the connector.

[Tip]Tip

Interesting chapter: Chapter 12, UMTS BOX.
