33.4. How to configure UPNP server

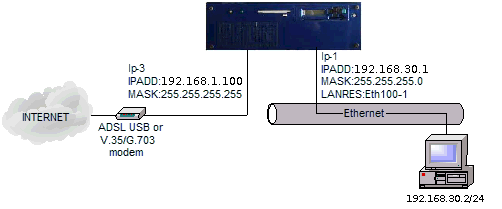

Assuming to have the above network, configure Abilis so that it can be used as a UPNP server only by the pc inside lan (to avoid security issues).

The first step is to add and activate the UPNPS resource, then type the following commands:

[15:23:32] ABILIS_CPX:_s p upnps ipsrc:192.168.30.2

COMMAND EXECUTED

[15:25:31] ABILIS_CPX:_d p upnps

RES:UPnPS - Not Saved (SAVE CONF), Not Refreshed (INIT) -----------------------
       ------------------------------------------------------------------------
Run    DESCR:Universal_Plug_and_Play_Server
       LOG:NO         ACT:YES   sesnum:5     udp-locport:1900  tcp-locport:1900
       MAX-AGE:1800   TOS:0-N
       IPSRC:192.168.030.002    IPSRCLIST:#
       WDIR:C:\APP\UPNP\

[15:25:34] ABILIS_CPX:_init res:upnps

COMMAND EXECUTED

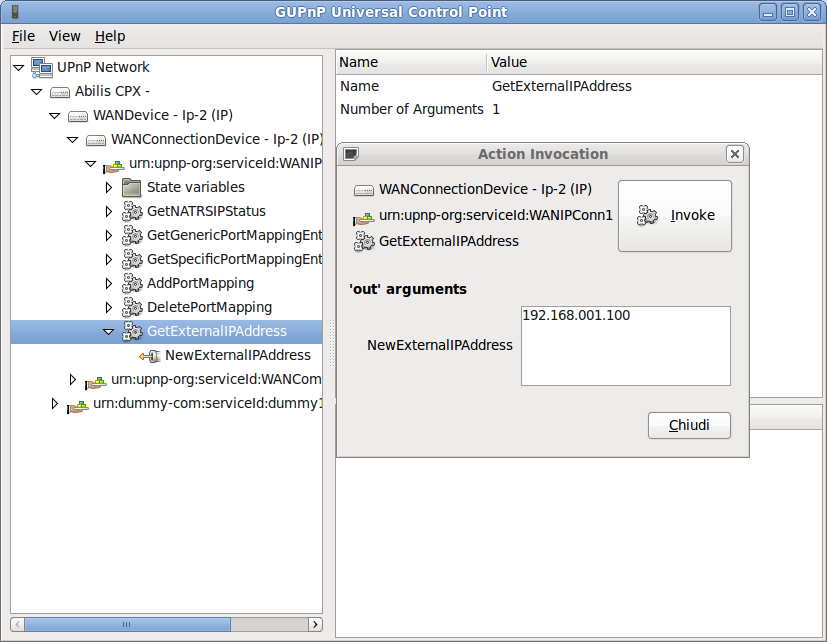

This is the result using GUPnP Universal Control Point on Ubuntu:
