70.2. How to create a VM in VirtualBox

First of all, download and install the VirtualBox software at https://www.virtualbox.org/wiki/Downloads.

Open the software and click on the New button. Follow the instructions on the screen and select VMDK (or another qemu-img supported file format) as hard drive file type.

[Note]Note

The VM's disk capacity must be smaller than the free space on Abilis' hard disk.

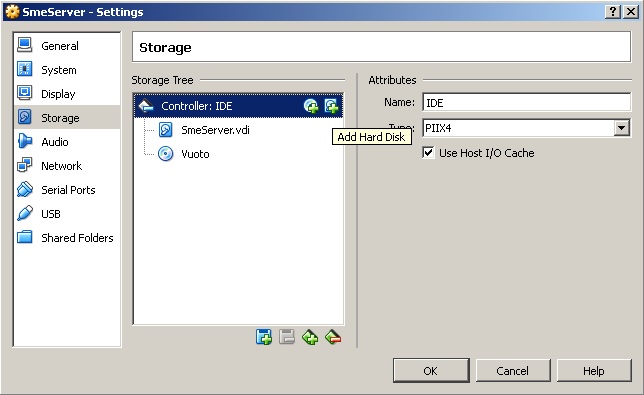

If the virtualized OS doesn't have the support for (or has some issues with) SATA disks, go on Settings and click on the Storage label.

Remove the SATA disk and the SATA controller, then add a IDE disk and associate it to the disk image.

Proceed with the OS setup and complete it.

[Note]Note

Some Linux distributions have LVM and RAID options active by default which could raise some issues, so you need to disable it. To do that, the procedure may change on different distibutions:

  • Ubuntu: there is a checkbox to enable LVM, but by default is not active

  • Debian: it asks if use LVM or not

  • CentOS: Automatic partitioning uses LVM. Manual partitioning needed

  • Fedora: You can choose if use or not LVM when you do the disk selection

  • SmeServer: at the boot prompt, write sme nolvm raid=0 and press return
