70.7. How to upgrade configuration files to newer firmware versions

Go to http://support.abilis.net/downloads/cpx2k/download.html and click the System and tools link of the firmware Release that you want to install; in the following page, download the “Console Configuration Converter” file convcfg.exe or the “GUI configuration converter” file convcfgw.exe.

For example, if you use the “GUI configuration converter”, follow these instructions:

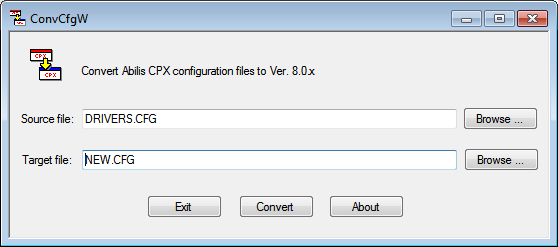

  1. Double-click the convcfgw.exe file: the following window will appear.

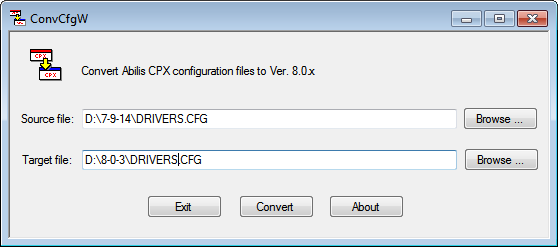

  2. Select in the Source file field the file that must be converted and in the Target file field the new file.

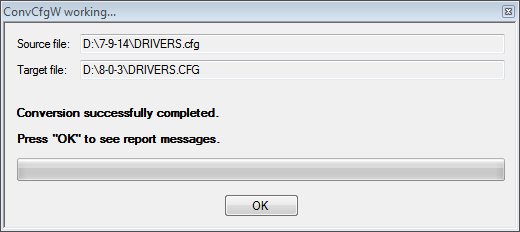

  3. Click the Convert button.

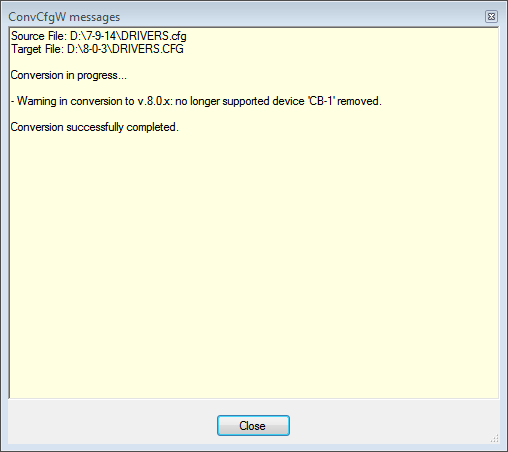

  4. Click the OK button: the report messages will be shown.

  5. Click the OK button to close the window and then the Exit button to close the program.
