3.6. POTS protection connection

Connect the POTS protection between Abilis and the POTS phones following the scheme below:

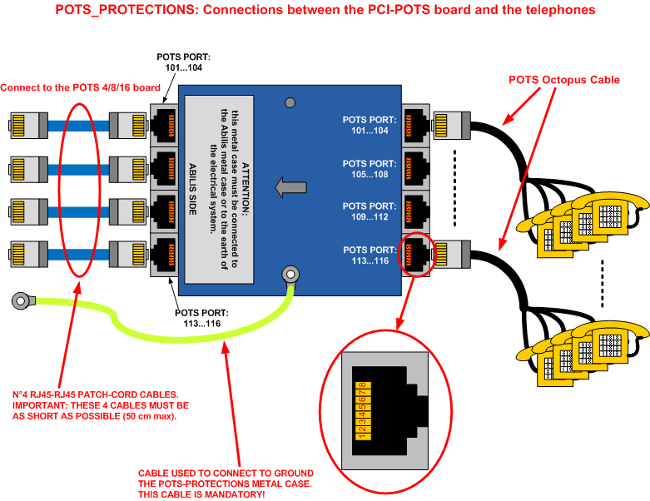

Figure 3.8. Connecting POTS protection

Connecting POTS protection

[Warning]Warning

The metal case must be connected to the Abilis metal case or to the earth of the electrical system.

[Tip]Tip

Interesting chapters:

Section 2.8.9, “POTS protection”;

Section 2.8.8, “POTS 4/8/16”;

Chapter 46, CTI System;

Section 72.2, “How to configure FXS (POTS) ports for analog telephones or FAX machines”.
