| 2.2. Abilis Base-D new | ||
|---|---|---|
| | Chapter 2. Abilis hardware | |
![[Important]](../images/important.png) | Important |
|---|---|
The Base-D new is supported starting from Abilis firmware version 8.5. |

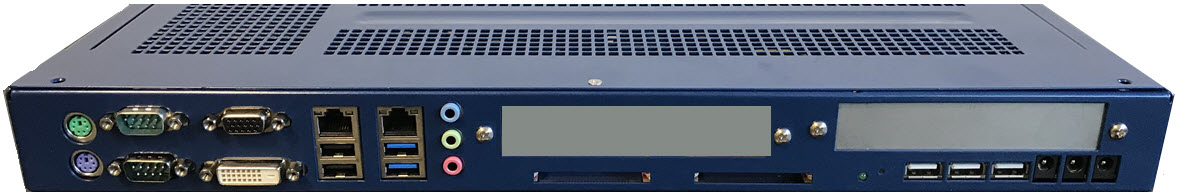

Abilis Base-D new is an expandable device. Below there are the hardware characteristics of the base unit:
M/B N3150ND3V;
Intel(R) Celeron(R) CPU N3150 @ 1.60GHz;
1024 MB RAM DDR3;
2 Compact-Flash 128MB modules for boot;
1 RS-232 ports;
7 USB ports;
![[Note]](../images/note.png) | Note |
|---|---|
2 USB ports are 3.0 and are colored blue to distinguish them from USB 2.0 since they look the same. |
2 GigaEthernet;
3 Power out connector useful to supply UMTS BOX2 or POTSBOX.
These are the expansions:
UPS-PSU 10A;
1 BSE.
BSE device configuration creates 8 BRI and 40 POTS and only the actually installed ones will be running. The not installed ports will appear as "Not running" and may be deactivated and hidden using the S INACT CTIP:xxx command.
The D PCIDEV will show the type and numbers of ports actually present on the installed BSE card using the following scheme:
nickname x-y-x
where
nicknameNickname used to identify the card available in one or more mounting options.
xNumber of BRI ports.
yNumber of on-board POTS ports.
zNumber of POTS ports available through ELTI interface and POTSBOX.
Examples of BSE:
![[Warning]](../images/warning.png) | Warning |
|---|---|
Be extremely careful while inserting the wires from the battery! Avoid short-circuits: they might cause hand-injuries till to battery explosion. |
Dimensions[mm]: 440x300x47;
Weight: 2 Kg;
Power supply: 110-230VAC, 150W.
| |  | |
