69.4. Preferences

This page allows to edit the user preferences and CTIP preferences.

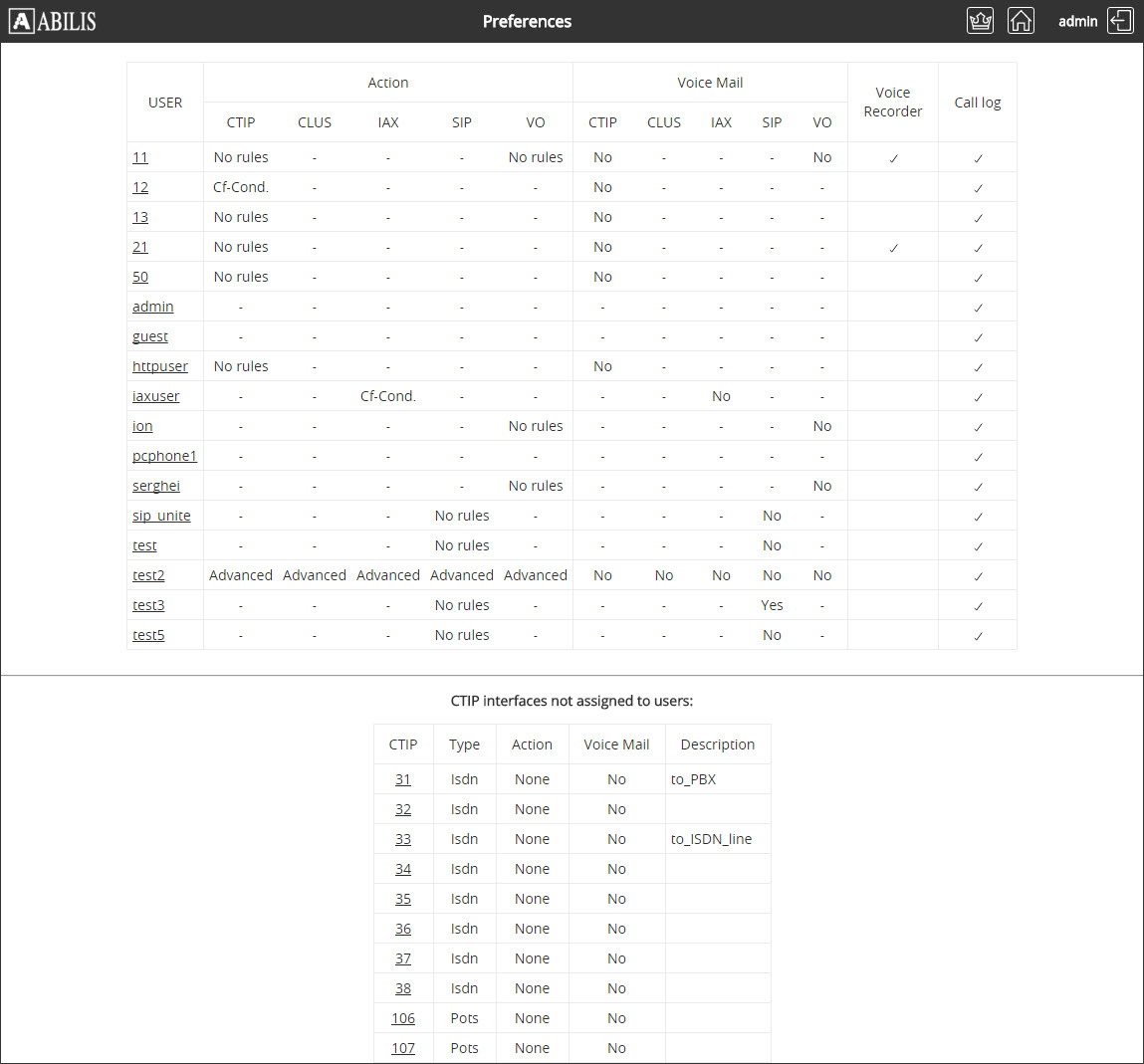

Click Preferences to view a list of the users and CTIP interfaces not assigned to users.

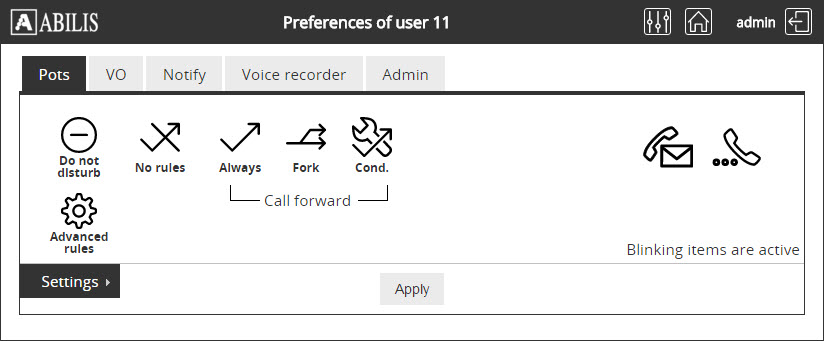

Click on the user name to edit his preferences.

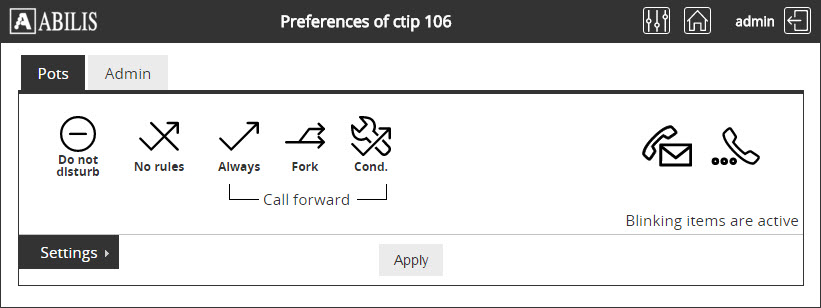

Or click on the CTIP interface to edit his preferences.

For more information about the user preferences administration through the web interface, please see Section 73.6, “Preferences”.

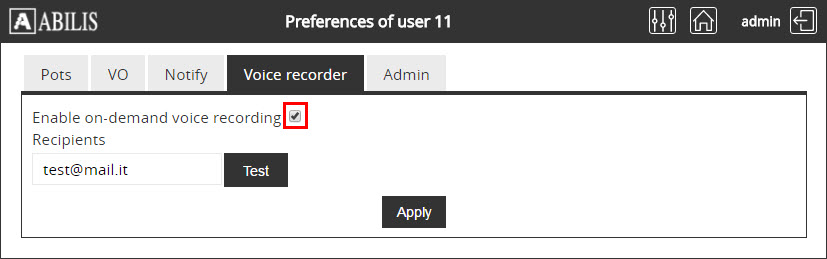

An additional privilege for administrator user, it can activate On-Demand Voice Recording. Click on the Voice recorder tab and check Enable on-demand voice recording as in the example below.

69.4.1. Admin Preferences

This page allows:

  • Enable the Call log/Recent calls; change the number of calls to be logged in incoming/outgoing/recent calls log files; clear and delete the log files.

  • Set priorities for precedence call.

  • Activate the CTI TRFA.

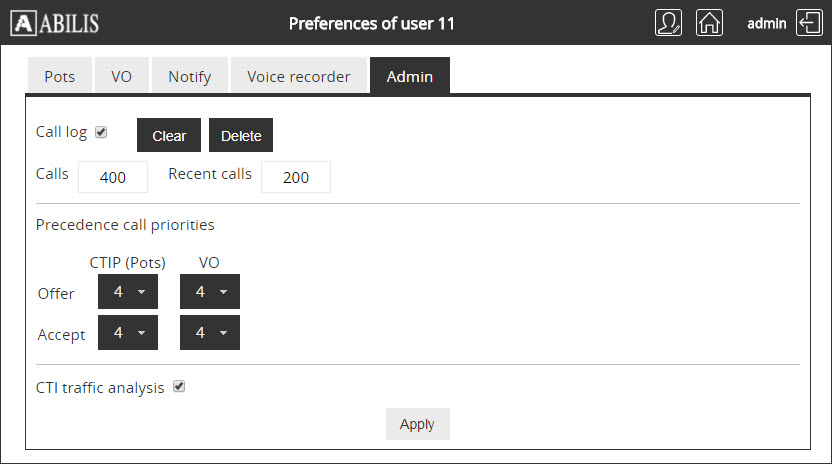

Click on the Admin tab to change the admin preferences.

69.4.1.1. Setting priorities for precedence call

Precedence alerts users even if they're busy in another conversation, or even if they had set the Do-not-Disturb flag. Simply a call waiting occurs and the destination listens to the proper tone.

A precedence call can be done:

  • Using the DTMF codes:

    • *8 - entered after call failure it repeats the call using the precedence.

      [Caution]Caution

      This keycode, now isn't supported by SIP and IAX phone.

The precedence call works only if the priority of the calling user is higher than the called user.

Priority values are from 4 (lower one) to 0 (higher one).

To allow the user to perform a precedence call, is required to be configured "Offer" to a value from 0 to 3. With default "Offer" value 4, you can't make a precedence call.

When you have finished, remember to click on "Apply".

With default "Accept" value 4, you can receive all precedence calls, that arrive with a priority value from 0 to 3.

[Note]Note

The SIP and IAX users can't receive precedence calls, only make them.

If the user wishes to receive precedence calls only with priority 0 (users who have "Offer" value 0), then you must configure "Accept" value 1.

Remember to click on "Apply".

If you don't want to receive precedence calls, set "Accept" value 0.

In the above example the user "11" will receive calls at fixed phone (CTIP) only precedence calls with priority 0 and at Abilisphone (VO) will not receive precedence calls.
