3.1. Numbering of the physical ports

Abilis has been conceived as a modular system to allow a number of possible configurations.

Every Abilis system is supplied with technical documents:

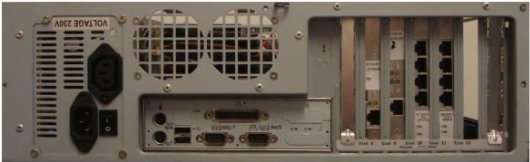

Figure 3.1. Abilis rear panel

Abilis rear panel

The connections usually are made on the Abilis rear panel. The chart below shows the different ports and their connection possibilities:

Table 3.1. Port numbering

Port NumberDescription
1 : 24CTI Port on QPRI
31 : 54CTI Port on BRI4 or BRI8 or BRI-HFC4 or BRI-HFC8
91 : 93ISDN Port on BRIO
101 : 196(FXS) analog port on POTS
201 : 232CTI port on GSM Box
ETH-xFast Ethernet “x”
SYNC-1 : SYNC-16Synchronous ports from 1 to 16 on ESB2
