53.10. View's settings

All the view settings are accessible from the Settings

53.10.1. Interfaces

You can choose which users/interfaces are displayed on the OPC panel. To change this options open the Interfaces tab.

You can choose to display all the users and all their interfaces, or select what interface is displayed for each user. Every interface has it's own user box.

You can also choose in which group the user is placed.

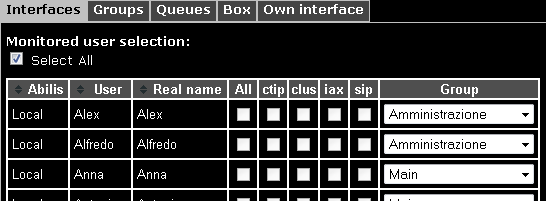

Figure 53.31. Interfaces

Interfaces


53.10.2. Groups

53.10.2.1. Manage groups

You can divide the user boxes into different groups.

Open the Groups tab. To create a group, click on +, write the name of the new group and confirm the name clicking on ✓. To delete a group, click on x.

You can change the position of a group dragging and dropping it.

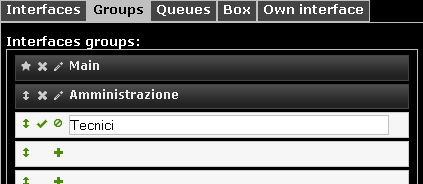

Figure 53.32. Groups

Groups


53.10.2.2. Change user's group

To select the group of each user, open the Interfaces tab. You can select the group in the group column.

Figure 53.33. Change group

Change group

53.10.3. Queues

In the Queues tab you can choose which queues are view in the right border of the OPC panel. You have to add the number of the user's queue you want to monitor.

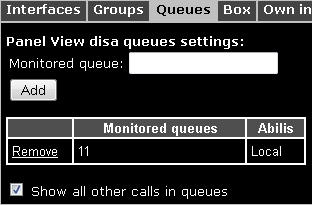

Figure 53.34. Monitored Queues

Monitored Queues

53.10.4. Box

In the Box tab you can change the size of the user boxes, the size of the texts and what informations are displayed in the user boxes (numbers, icons, names).

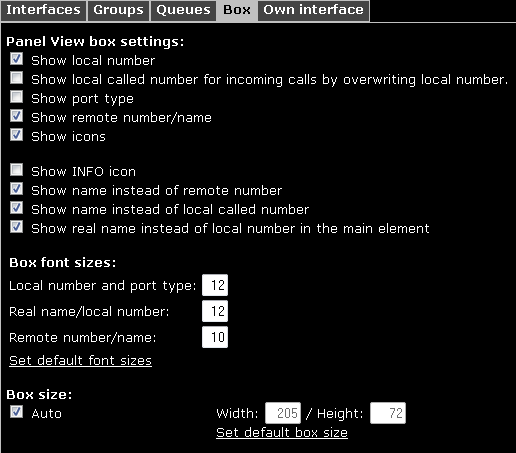

Figure 53.35. Box

Box

53.10.5. Own interface

When you use the OPC panel, you can manage only one interface at time. The Own interface tab contains a drop-down menu that let you choose which interface is being used.

Figure 53.36. Own interface

Own interface

53.10.6. Change box position

You can change the position of each user box or the user's group simply dragging and dropping them, but first you have to click on the button that unlocks the user boxes' position . When you have finished to move the user boxes, click on the button that locks their position .

If you want to undo the block's movements, you can click on the undo button . If you want to completely reset the block position you can click on the reset button , that opens a pop-up window, asking which way reposition the user boxes.

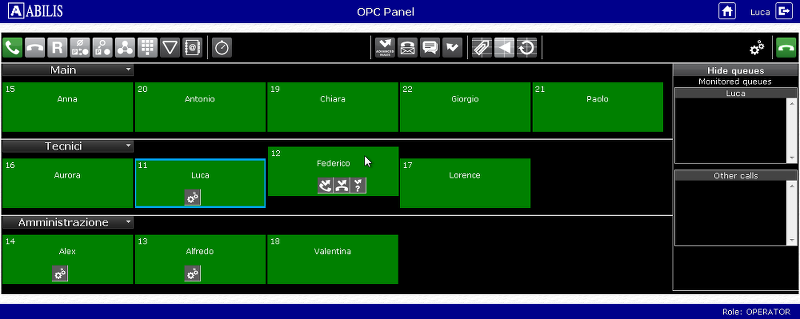

Figure 53.37. Groups in OPC panel

Groups in OPC panel
