46.4. CTI Cluster

A “Cluster” identifies a connection, used to transport compressed phone calls, between two Abilis. Each cluster is identified with a clear label registered in the Abilis configuration.

Cluster names basically are made by 1 to 8 characters in the range '0'..'9', 'A'..'Z', 'a'..'z', '_', ':' , but to support unified namespace we have to exclude the following combinations:

The following commands to manage the CTI Clusters use:

The d cticl ? command shows all available parameters.

The example below shows how to add the cluster Abilis2 (the number associated to the cluster is 0123456).

[15:17:02] ABILIS_CPX:a cticl id:Abilis2 descr:Cluster_to_Abilis2 num:0123456

COMMAND EXECUTED

[15:17:32] ABILIS_CPX:d cticl

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Clusters:6         Activated Clusters:8

---------+----------------------+----+-----+--------+-------------+------------
CLUS:    |[DESCR:]
[ID:]    |NUM-IN-REWRITE:       |SS: |CPO: |RG-IN:  |BUSY-ON-MAX: |CLIP-RULE:
         |NUM:                  |PC: |LCS-GROUP:    |ADDRBOOK-NUM:
         |NUMx:
---------+----------------------+----+-----+--------+-------------+------------
Abilis2  [Cluster_to_Abilis2     NO   NO    DISABLE  NO            PRIVATE
[  1]     ue*                    NO   NONE           NUM
          0123456

Meaning of the most important parameters:

CG-IN-REWRITE

Rewrites the calling number received from the cluster, after NUMx and NUM processing.

RG-IN

Enable/disable management of incoming redirecting [DISABLE, ENABLE].

SS

Enable/disable supplementary services [NO, YES].

CPO

Sets for which direction the Call Path Optimization is allowed [NO: Call Transfer is not sent out and it is ignored in input, IN: Call Transfer is accepted in input but it is not sent out, OUT: Call transfer is sent out but it is ignored in input, BID: Call Transfer is sent out and it is accepted in input].

NUM

Phone number assigned to the CTI cluster. The available values are:

  • *: the Calling Number offered by CTIR is passed transparently to the device;

  • #: the Calling Number is not passed to the device;

  • ##: enforces the presentation restricted: the Calling Number is not passed to the device;

  • nnnn: exactly this number is passed as Calling Number to the device;

  • nnnn*: the Calling Number received from CTIR is modified by replacing first four digits with nnnn;

  • nnnn??: similar to nnnn* with the difference that only an exact number of digits as many ? is passed after nnnn;

  • ????: only an exact number of digits as many ? is passed after the nnnn.

NUMx

additional phone number(s) assigned to this cluster.

LCS-GROUP

Last Calling number Service group identifier [NONE, 1..32]

BUSY-ON-MAX

Return BUSY cause when MAXCON or MAXBW are exceeded [NO, IN, OUT, BID]

CLIP-RULE

Specifies the treatment of the CG number for calls TO the cluster (OUTGOING) [PRIVATE, PUBLIC]. If PRIVATE the CG is sent unmodified, if PUBLIC the CG is emptied when PI is set to RESTRICTED.

A list of cluster numbers (NumClus) is automatically generated by the system; it contains the correspondence between Clusters and their respective numbers.

[15:22:55] ABILIS_CPX:d list

Last change: 22/04/2015 14:22:37 CET

Used-Lists:  1     Used-Items:    0     Used-Resources:    80  (byte)
Free-Lists:249     Free-Items: 4000     Free-Resources: 645040 (byte)

 Id Name             Type   Description                Edt St RefN. First Numb
---+----------------+------+--------------------------+---+--+-----+-----+-----
  1 NumClus          CLNUM  Automatically_generated...     R      3     0     1
-------------------------------------------------------------------------------
IN:ISDN Numbers,               XN:X25 NUAs,                CR:CPX resources,
INN:ISDN Numbers Normalized,   XU:X25 UDFs,                EC:CTI Clusters,
IS:ISDN Sub Addresses,         IP:IP Addresses,            MAC:MAC Addresses,
INR:ISDN Numbers Replacements, IR:IP Addresses Ranges,     DN:Dialing Numbers,
IN2T:ISDN Numbers to Text,     IPT:Internet Protocols,     TXT:Text,
CLNUM:CTI Clusters Numbers,    TUP:TCP/UDP ports ranges,
ICAUSE:ISDN Cause codes,       ICMPT:ICMP message Types,   RU:Rules,
OPC:OPC Unique User IDs,                                   MR:Master Rules.
-------------------------------------------------------------------------------

[15:29:34] ABILIS_CPX:d list:NumClus

LIST:NumClus              - CLNUM             - Ref-Numb:3     Items-Numb:1
     Automatically_generated_CTI_Clusters_Numbers_list_(ReadOnly)
     --------------------------------------------------------------------------
     0123456              Abilis2

This list can be used to simplify the structure of the CTI Routings : an unique rule can route all the calls for the Clusters, by verifying the called number configured. See the example in the CTI Routing section further details.

[Caution]Caution

Changes made on the CTI Clusters are not immediately active. To activate them, execute the initialization command init ctisys.

46.4.1. CPO - Call path optimization

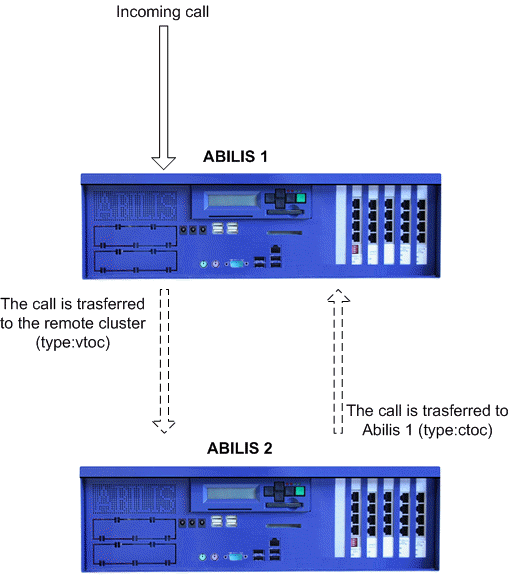

The call path optimization allows to optimize the path of calls. Supposing to have the following scheme:

A call is received by Abilis 1 and the operator routes the call toward Abilis 2. Then the remote user reroutes the call toward the Operator. Without CPO the calls (one from Abilis 1 to Abilis2 and one from Abilis 2 to Abilis 1) remain active and can cause a degradation of the quality.

With CPO active the calls drawed with dotted lines are closed and the initial one remains active.

[Note]Note

CPO feature is available also for IAX and SIP resources.
