2.12. Remote devices
Prev Chapter 2. Abilis hardware Next

2.12. Remote devices

2.12.1. RVS - Remote Video Surveillance

This device is used to handle up to:

  • 4 Digital Inputs;

  • 4 Digital Outputs;

  • 1 telecamera.

RVS is connected to Abilis via Ethernet interface.

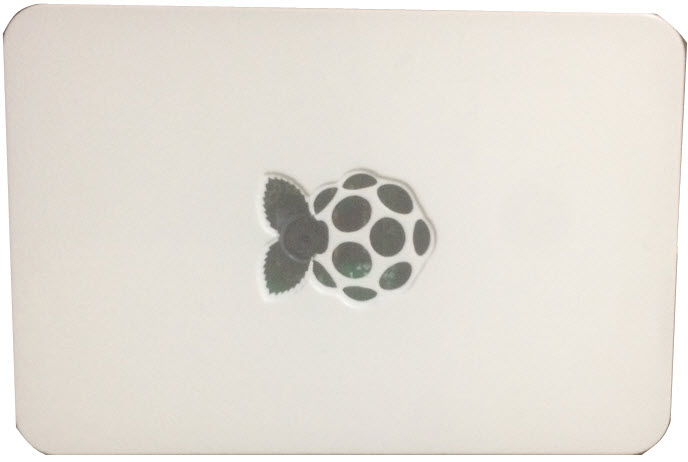

Figure 2.63. RVS device

RVS device

[Note]Note

The RVS is supported starting from Abilis firmware version 8.4.

[Tip]Tip

Interesting chapters:

Section 3.12, “RVS connection”;

Section 68.24, “Rio/Rvs configuration”;

Section 17.3.3, “Activating the RVS device”;

Chapter 52, VS - Video Surveillance;

Section 77.2.1, “Example of LUA Script to pilot digital outputs of RIO device”;

Section 68.20, “Videorecorder”.

2.12.2. RIO - Remote I/O

This device is used to handle up to:

  • 16 Digital Inputs;

  • 16 Digital Outputs;

  • 8 Analog Inputs;

  • 8 Analog Outputs.

RIO is connected to Abilis via Ethernet interface.

Figure 2.64. RIO device

RIO device

[Note]Note

The RIO is supported starting from Abilis firmware version 8.4.

[Tip]Tip

Interesting chapters:

Section 3.13, “RIO connection”;

Section 17.3.4, “Activating the RIO device”;

Section 77.2.1, “Example of LUA Script to pilot digital outputs of RIO device”;

Section 68.24, “Rio/Rvs configuration”.

2.12.2.1. RIO Boards

RIO device is produced in 2 Boards types:

  1. RIO Board-0, embedded with 4 Digital Inputs and Digital Outputs.

    Figure 2.65. RIO Board-0

    RIO Board-0

    [Tip]Tip

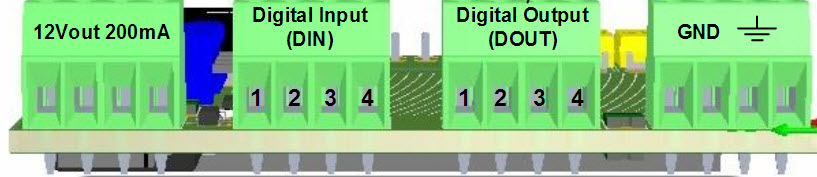

    Physical connection of RIO Board-0 is identical with RVS, please see: Section 3.12, “RVS connection”.

  2. RIO Board-1, available in more subtypes.

    Figure 2.66. RIO Board-1

    RIO Board-1

2.12.2.1.1. RIO Board-1 subtypes

RIO device is available in more subtypes:

Table 2.22. RIO subtypes

SubtypeDigital InputsDigital Outputs/Relay SwitchAnalog InputsAnalog Outputs
116040
212440
38840
441240
501640
68844
78800

Below the pin mapping for these subtypes:

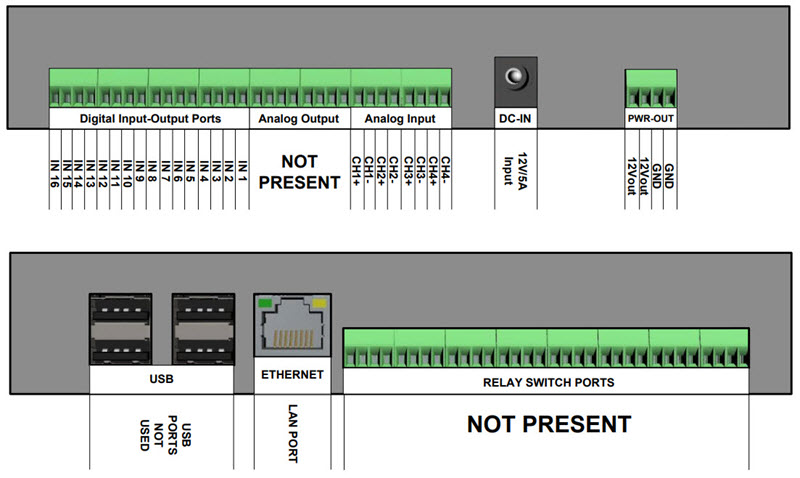

Figure 2.67. RIO subtype 1

RIO subtype 1

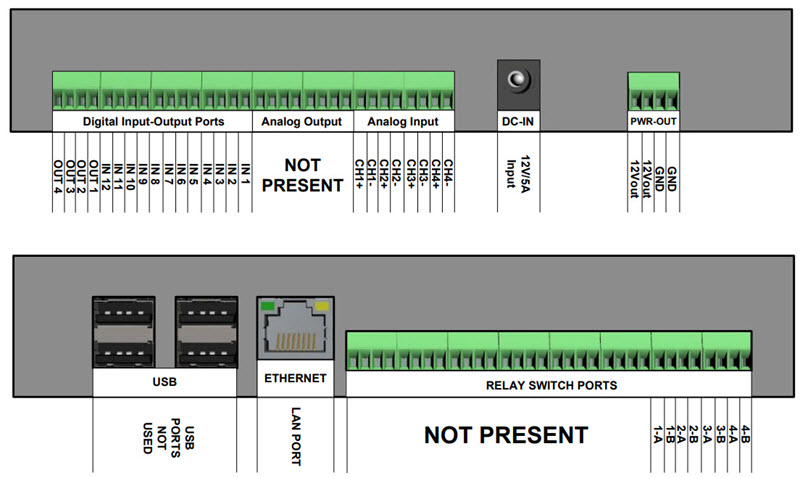

Figure 2.68. RIO subtype 2

RIO subtype 2

Figure 2.69. RIO subtype 3

RIO subtype 3

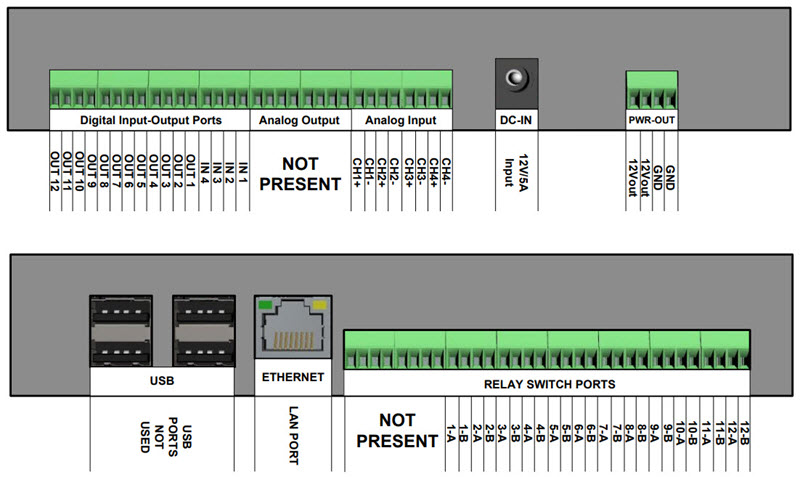

Figure 2.70. RIO subtype 4

RIO subtype 4

Figure 2.71. RIO subtype 5

RIO subtype 5

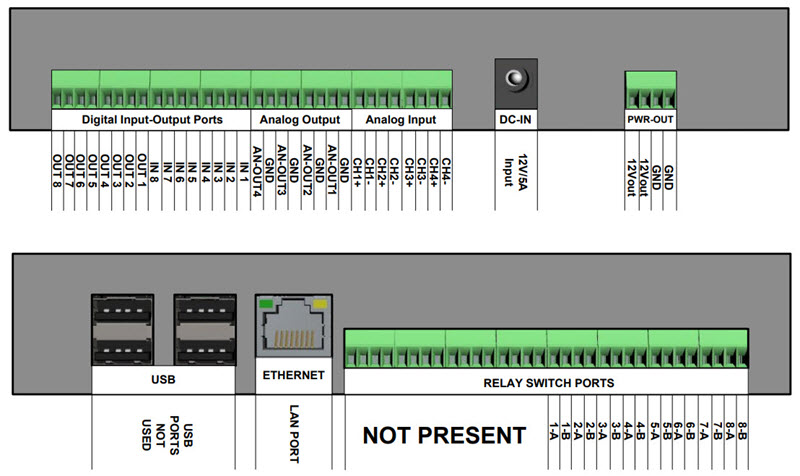

Figure 2.72. RIO subtype 6

RIO subtype 6

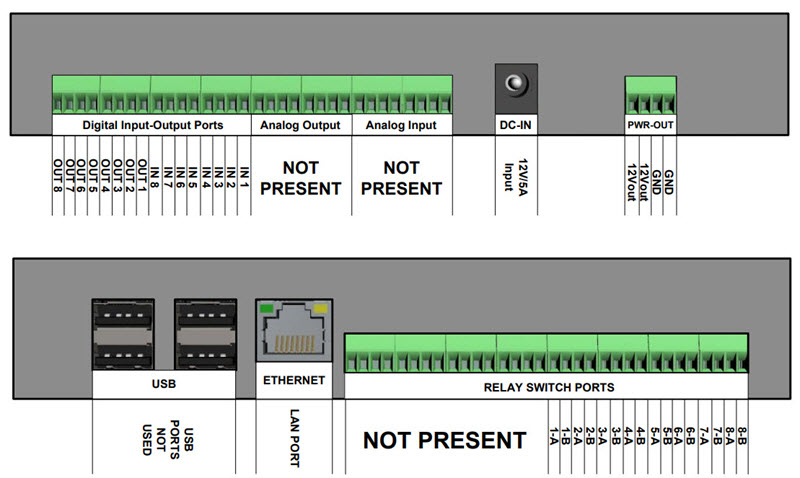

Figure 2.73. RIO subtype 7

RIO subtype 7

[Tip]Tip

Interesting chapters:

Section 3.13, “RIO connection”;

Section 17.3.4, “Activating the RIO device”;

Section 77.2.1, “Example of LUA Script to pilot digital outputs of RIO device”;

Section 68.24, “Rio/Rvs configuration”.

2.12.2.2. RIO ports

Digital Input (D-IN)

The input ports are normally kept at 5V by means of a 10Kohm resistor. The logic value is ON. By connecting the input port to GND, the value goes OFF.

[Tip]Tip

Interesting chapter: Section 3.13.1.2, “Connecting a motion sensor to Digital Input”.

Digital Output (D-OUT)

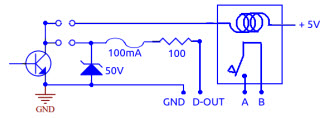

You can choose whether to use the relay output ("clean contact" A-B), or the output "open collector" supplying with power +5 ... +12V with a max current of 100mA.

[Tip]Tip

Interesting chapter: Section 3.13.1.1, “Connecting an external relay to Digital Output”.

Relay Switch

Limit values: max switched voltage 220V DC, 250V AC; max switching power 30W or 62W; switched current 1A. The ON logic value corresponds to the closed contact.

[Tip]Tip

Interesting chapter: Section 3.13.1.3, “Connecting a DC motor to Relay Switch Port”.

Analog Input (A-IN)

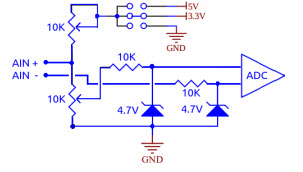

These input ports are differential: they measure the voltage difference between line + and line - but it is necessary, however, that the potential difference of each line with respect to GND does not exceed 4.5 volts.

Analog Output (A-OUT)

These output lines refer to GND. The output signal is adjustable between 0 and 10 V DC at 0.1V steps.

DC-IN

Power connector. Input 12V - 5A.

PWR-OUT

Power sources for external sensors and actuators. The V-OUT is limited to 1A for each terminal. The GND must be used as a common ground reference for the various Input and Output lines.

LAN

Ethernet 10M/100M auto-sensing. Support TCP/IP exclusively using the Abilis protocol.

USB

With the current firmware, ports are not used.
