2.2. Abilis Base-D N3150/N3160

[Important]Important

The Base-D N-3150/N-3160 is supported starting from Abilis firmware version 8.5.

Figure 2.3. Abilis Base-D N3150/N3160

Abilis Base-D N3150/N3160

Abilis Base-D N3150/N3160 is an expandable device. Below there are the hardware characteristics of the base unit:

These are the expansions:

2.2.1. Physical and electrical specifications

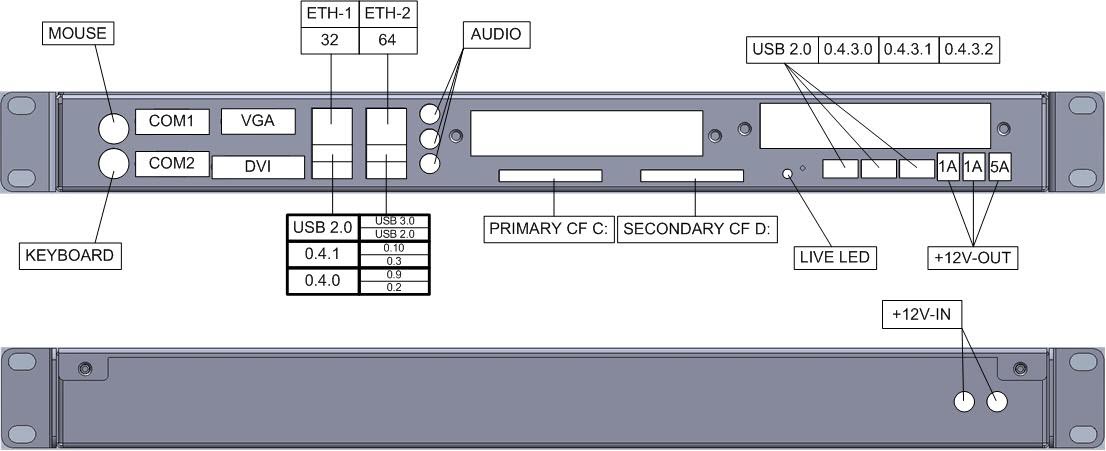

Figure 2.4. The numbering of the physical ports

The numbering of the physical ports

[Important]Important

In ports that support both USB 3.0 and USB 2.0, when changing the device type from USB 3.0 to USB 2.0, or vice versa, it is necessary to change the USBPORTID parameter, please see: Section 79.12, “How to replace USB Ethernet with USB GigaEthernet”.

Dimensions[mm]: 440x300x47;

Weight: 2 Kg;

Power supply: 110-230VAC, 150W.
