2.10. Abilis PCI boards and extension boards

Abilis can be supplied with several PCI cards, as many as the mother board can host (up to 4 PCI slots). Here are the available cards:

Table 2.4. Abilis PCI boards and extension boards

Card nameFunctionNotes
QPRIX4 ports Primary Rate ISDNStand-alone card
PB222 ports Primary Rate ISDN 2 ports Basic Rate ISDNStand-alone card
PB44X - PB444 ports Primary Rate ISDN 4 ports Basic Rate ISDNStand-alone card+ extension
BRI-HFC3-LP4 or 8 ports Basic Rate ISDNStand-alone card
BRI-HFC44 ports Basic Rate ISDNStand-alone card
BRI-HFC88 ports Basic Rate ISDNStand-alone card
POTS 4/8/16From 4 to 16 FXS analog channelsCan be supplied with CTI or BRI-HFC card
BSE1 ELTI, From 0 to 4 BRI and/or from 0 to 4 POTSStand-alone card
POTSHUB4 ports ELTIStand-alone card
EthernetIP router, Ethernet bridgeStand-alone card
GigaEthernetIP router, Ethernet bridgeStand-alone card
QUAD-EthernetIP router, Ethernet bridgeStand-alone card

2.10.1. QPRIX

The QPRIX is a stand-alone card, it has 4 primary interfaces (ISDN-PRI) and supports up to 16 DSP for 64 compressed calls. Besides echo canceller (EC) is available up to 32 ms but it can raise up to 128 ms in the version with the additional Octasic chip (EEC).

Through H.100 bus it can also be connected to other cards of the CTI category.

[Note]Note

The QPRIX is supported starting from Abilis firmware version 6.3.

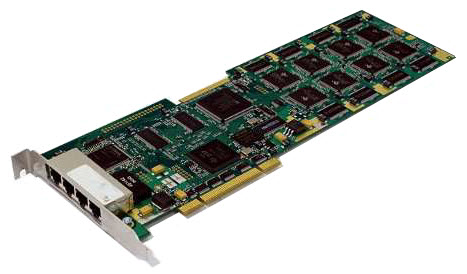

Figure 2.23. QPRIX

QPRIX

For the ISDN-PRI (S2M) interfaces no standard physical port is specified. The Abilis QPRIX use RJ45 sockets with the same signal arrangement as the one used to access to BRI NT:

Table 2.5. QPRIx – RJ45 pinout (Physical NT)

PinSignal
1N.C.
2N.C.
3Rx + (inbound)
4Tx + (outbound)
5Tx - (outbound)
6Rx - (inbound)
7N.C.
8N.C.

Each interface presents a 120 ohm balanced impedance. Each port can be configured as NT (Network Termination) or TE (Terminal Equipment).

2.10.1.1. Physical and electrical specifications

Dimensions[mm]: 312x106;

Weight: 0.20Kg.

Table 2.6. Power consumption

ConditionConditionConsumption (mA)
Main 3.3 V regulatorAfter reset920
Main 3.3 V regulatorAfter C6412 firmware upload1000
Main 3.3 V regulatorAfter FPGA firmware upload1350
Main 3.3 V regulatorAfter QFALC activation1560
Main 3.3 V regulatorwith 36 HDLC channels up&running1570
Main 3.3 V regulatorwith 64 AC channels up&running1990
Main 3.3 V regulatorwith all QFALC ports connected&performing traffic1630
Audiocodes' 1.8 V regulatorAfter reset100
Audiocodes' 1.8 V regulatorAfter KERNEL and PROGRAM download960
Octasic's 1.8V regulatorAfter reset50
Octasic's 1.8V regulatorAfter firmware download, during BIST140
FPGA's 1.2 V regulatorAlways330
C6412's 1.2 V regulatorAlways380
C6412's 2.5 V regulatorAlways60

2.10.2. PB22

The PB22X is a stand-alone card, it has 2X ISDN Primary Ports (ISDN30) and 2X ISDN Basic Ports (ISDN2).

Through H.100 bus it can also be connected to other cards of the CTI category.

Figure 2.24. PB22

PB22

The Abilis PB22 use RJ45 plugs with the following pinout for ISDN-PRI (S2M):

Table 2.7. PB22 – PRI RJ45 pinout (Physical NT)

PinSignal
1N.C.
2N.C.
3Rx + (inbound)
4Tx + (outbound)
5Tx - (outbound)
6Rx - (inbound)
7N.C.
8N.C.


The Abilis PB22 use RJ45 plugs with the following pinout for ISDN-BRI:

Table 2.8. PB22 – BRI RJ45 pinout (Physical TE)

PinSignal
1N.C.
2N.C.
3Tx + (outbound)
4Rx + (inbound)
5Rx - (inbound)
6Tx - (outbound)
7N.C.
8N.C.

2.10.2.1. Physical specifications

Dimensions[mm]: 312x106;

Weight: 0.20Kg;

2.10.3. PB44X

The PB44X card has 4 primary interfaces (ISDN-PRI) and, by means of a daughterboard (BRI4ADD, see photo), 4 ISDN Basic Rate (ISDN-BRI) interfaces. All interfaces are freely configurable as NT / TE.

It supports up to 16 DSP for 64 compressed calls and can be connected to other CTI cards through the H.100 bus.

[Note]Note

The PB44X is supported starting from Abilis firmware version 6.3.

[Tip]Tip

For information about the connection between Abilis and ISDN Basic Rate Interface (BRI) lines refer to Section 3.2, “ISDN Basic Rate Interface (BRI) connection”.

Figure 2.25. PB44X

PB44X

The PB44X cards use RJ45 plugs with the following pinout, either on the main board (4 PRI ports) or on the extension (4 BRI ports).

Table 2.9. PB44X – RJ45 pinout (Physical NT)

PinSignal
1N.C.
2N.C.
3Rx + (inbound)
4Tx + (outbound)
5Tx - (outbound)
6Rx - (inbound)
7N.C.
8N.C.

Each PRI interface presents a 120 ohm balanced impedance. Each port can be configured as NT (Network Termination) or TE (Terminal Equipment). The BRI ports have to use an impedance matching adapter.

[Warning]Warning

Although only one PCI slot is used for the electrical connection on the external part of the cabinet, the additional 4 BRI ports occupy an additional slot (for mechanical connection only).

2.10.3.1. Physical specifications

Dimensions[mm]: 312x106;

Weight: 0.20Kg;

2.10.4. PB44

The PB44 card has 4 primary interfaces (ISDN-PRI) and, by means of a daughterboard (BRI4ADD, see photo), 4 ISDN Basic Rate (ISDN-BRI) interfaces. All interfaces are freely configurable as NT / TE.

It supports up to 6 DSP for 24 compressed calls and can be connected to other CTI cards through the H.100 bus.

[Tip]Tip

For information about the connection between Abilis and ISDN Basic Rate Interface (BRI) lines refer to Section 3.2, “ISDN Basic Rate Interface (BRI) connection”.

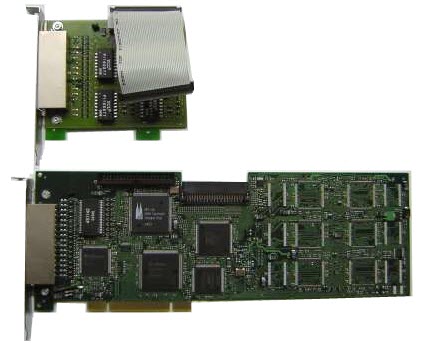

Figure 2.26. PB44

PB44

The PB44 cards use RJ45 plugs with the following pinout, either on the main board (4 PRI ports) or on the extension (4 BRI ports).

Table 2.10. PB44 – RJ45 pinout (Physical NT)

PinSignal
1N.C.
2N.C.
3Rx + (inbound)
4Tx + (outbound)
5Tx - (outbound)
6Rx - (inbound)
7N.C.
8N.C.

Each PRI interface presents a 120 ohm balanced impedance. Each port can be configured as NT (Network Termination) or TE (Terminal Equipment). The BRI ports have to use an impedance matching adapter.

[Warning]Warning

Although only one PCI slot is used for the electrical connection on the external part of the cabinet, the additional 4 BRI ports occupy an additional slot (for mechanical connection only).

2.10.4.1. Physical specifications

Dimensions[mm]: 312x106;

Weight: 0.20Kg;

2.10.5. BRI-HFC3-LP

The BRI-HFC3-LP card does the same work as a composite system made with: CTI board + BRI-4 (or BRI-8) module + DSP, but its cost is lower. It supports one/two DSP to manage four or eight simultaneous VoIP calls.

The DSPs now supports g.729 codec; besides all BRI-HFC cards are equipped with H100 bus.

[Note]Note

The BRI-HFC3-LP is supported starting from Abilis firmware version 7.7.

[Tip]Tip

For information about the connection between Abilis and ISDN Basic Rate Interface (BRI) refer to Section 3.2, “ISDN Basic Rate Interface (BRI) connection”.

Figure 2.27. BRI-HFC3-LP

BRI-HFC3-LP

The BRI-HFC3-LP cards use RJ45 plugs with the following pinout:

Table 2.11. BRI-HFC3-LP – RJ45 pinout (Physical TE)

PinSignal
1N.C.
2N.C.
3Tx + (outbound)
4Rx + (inbound)
5Rx - (inbound)
6Tx - (outbound)
7N.C.
8N.C.

Each is freely configurable (at the logical level) like NT (Network Termination) or TE (Terminal Equipment). The BRI ports require an impedance matching adapter.

2.10.5.1. Physical specifications

Dimensions[mm]: 223x106;

Weight: 0.17 Kg;

2.10.6. BRI-HFC4 / BRI-HFC8

2.10.6.1. BRI-HFC4 / BRI-HFC8

The BRI-HFC4 card does the same work as a composite system made with: CTI board + BRI-4 (or BRI-8) module + DSP, but its cost is lower. It supports one/two DSP to manage four or eight simultaneous VoIP calls.

The DSPs now supports g.729 codec; besides all BRI-HFC cards are equipped with H100 bus.

[Tip]Tip

For information about the connection between Abilis and ISDN Basic Rate Interface (BRI) refer to Section 3.2, “ISDN Basic Rate Interface (BRI) connection”.

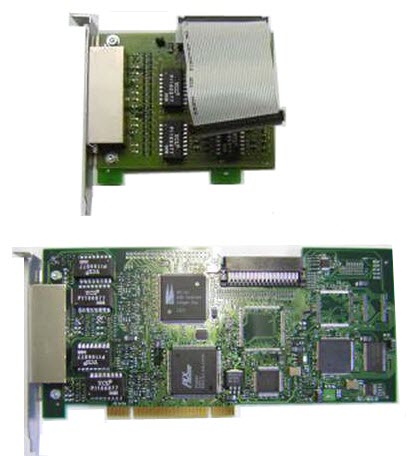

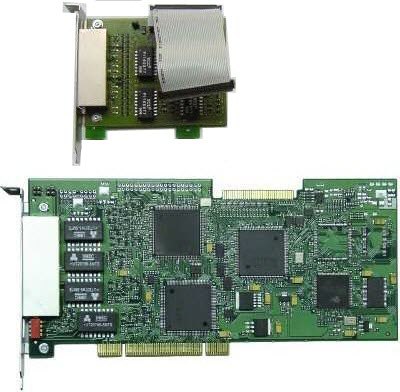

Figure 2.28. BRI-HFC

BRI-HFC

The BRI-HFC cards use RJ45 plugs with the following pinout :

Table 2.12. BRI-HFC – RJ45 pinout (Physical NT)

PinSignal
1N.C.
2N.C.
3Rx + (inbound)
4Tx + (outbound)
5Tx - (outbound)
6Rx − (inbound)
7N.C.
8N.C.

Each is freely configurable (at the logical level) like NT (Network Termination) or TE (Terminal Equipment). The BRI ports require an impedance matching adapter.

2.10.6.2. Physical specifications

Dimensions[mm]: 223x106;

Weight: 0.17 Kg;

2.10.6.3. BRI-HFC4 / BRI-HFC8 (old model)

The BRI-HFC4 (BRI-HFC8) card does the same work as a composite system made with: CTI board + BRI-4 (or BRI-8) module + DSP, but its cost is lower. It supports one/two DSP to manage four or eight simultaneous VoIP calls.

Unlike BRI-HFC4/BRI-HFC8, the DSPs doesn't support g.729 codec; besides all older models of BRI-HFC cards are available in two versions:

  • Equipped with H100 bus;

  • Not equipped with H100 bus.

[Tip]Tip

For information about the connection between Abilis and ISDN Basic Rate Interface (BRI) refer to Section 3.2, “ISDN Basic Rate Interface (BRI) connection”.

Figure 2.29. BRI-HFC (old model)

BRI-HFC (old model)

The BRI-HFC cards use RJ45 plugs with the following pinout :

Table 2.13. BRI-HFC – RJ45 pinout (Physical NT)

PinSignal
1N.C.
2N.C.
3Rx + (inbound)
4Tx + (outbound)
5Tx - (outbound)
6Rx − (inbound)
7N.C.
8N.C.

Each is freely configurable (at the logical level) like NT (Network Termination) or TE (Terminal Equipment). The BRI ports require an impedance matching adapter.

2.10.7. POTS 4/8/16

The POTS cards belong to the CTI family and are used to connect analog telephones to the Abilis system. POTS are available with 4, 8 or 16 FXS (BCA) interfaces. Through the H.100 bus, when installed on the same Abilis, several POTS cards behave like a single module (it works also with CTI or BRI-HFC cards). In this way, Abilis becomes a powerful PBX system.

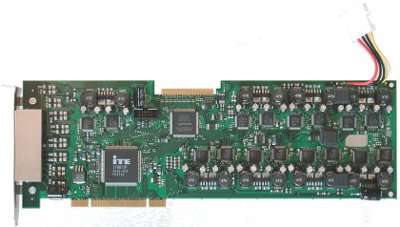

Figure 2.30. POTS

POTS

POTS cards have four RJ45 sockets. Each socket is to be used with an octopus cable (one RJ45 plug <-> four RJ11 plugs). Each RJ11 is for one telephone.

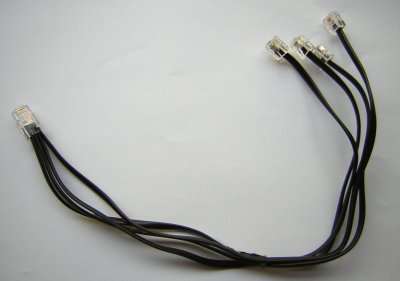

Figure 2.31. “Octopus” POTS Cable

Octopus POTS Cable

The octopus for POTS uses the following pinout.

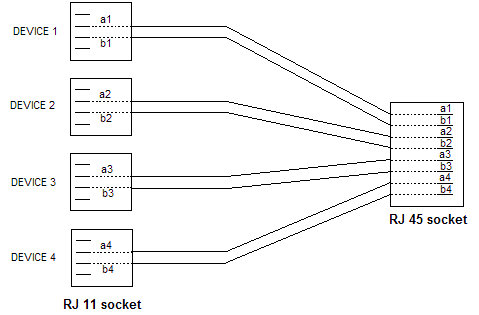

Figure 2.32. “paraOctopus” POTS Cable pinout

paraOctopus POTS Cable pinout

Table 2.14. Octopus cable pinout

RJ45 PinRJ11 Pin
1 (a1)DEVICE 1 #1 - 1
2 (b1)DEVICE 1 #1 - 2
3 (a2)DEVICE 2 #2 - 1
4 (b2)DEVICE 2 #2 - 2
5 (a3)DEVICE 3 #3 - 1
6 (b3)DEVICE 3 #3 - 2
7 (a4)DEVICE 4 #4 - 1
8 (b4)DEVICE 4 #4 - 2

[Note]Note

A variable delay to the start of ring signals is used to prevent a current overload in case of multicast groups with large numbers of Pots ports. The delay is in the range of 20 to 140 msec.

2.10.7.1. Physical specifications

Dimensions[mm]: 312x106;

Weight: 0.27Kg.

2.10.8. POTS protection

This device allows protecting POTS ports from external overvoltages and overcurrents such as the ones generated from lightning.

It's equipped with:

  • Four RJ45 which must be connected to the POTS 4/8/16 card;

  • Four RJ45 which must be connected to the POTS phones.

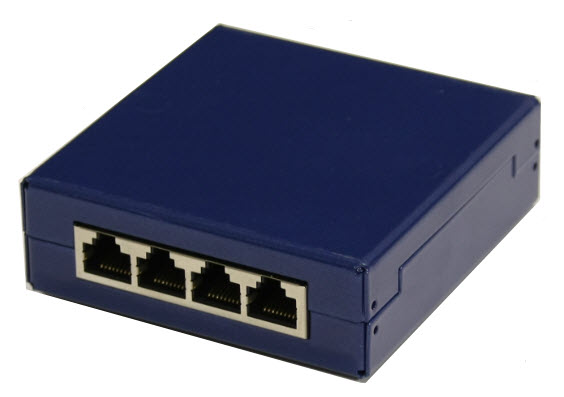

Figure 2.33. POTS protection

POTS protection

2.10.9. BSE

2.10.9.1. BSE20

The BSE20 is a PCI card equipped with 1xRJ45 connector for Abilis proprietary ELTI (External LVDS TDM interface) interface, 2xRJ45 Gigabit Ethernet ports and POWER-OUT connector useful to supply POTSBOX. The ELTI interface is used to connect the POTSBOX chassis which offers up to 32 POTS interfaces.

[Note]Note

The BSE26 is supported starting from Abilis firmware version 7.9.

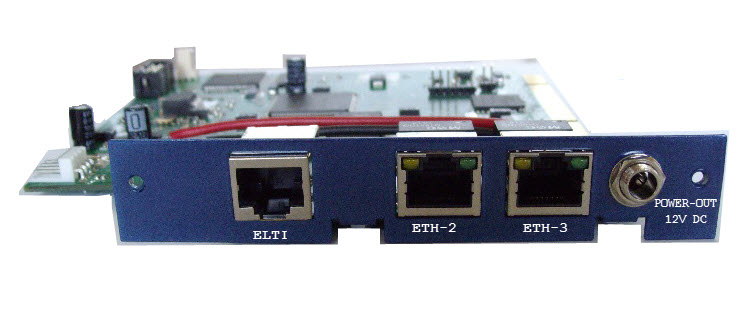

Figure 2.34. BSE20

BSE20

2.10.9.2. BSE26

The BSE26 is a PCI card equipped with 1xRJ45 connector for Abilis proprietary ELTI (External LVDS TDM interface) interface, 2X ISDN Basic Ports (ISDN-BRI) and POWER-OUT connector useful to supply POTSBOX or and with 2X POTS ports. The ELTI interface is used to connect the POTSBOX chassis which offers up to 32 POTS interfaces.

[Note]Note

The BSE26 is supported starting from Abilis firmware version 7.9.

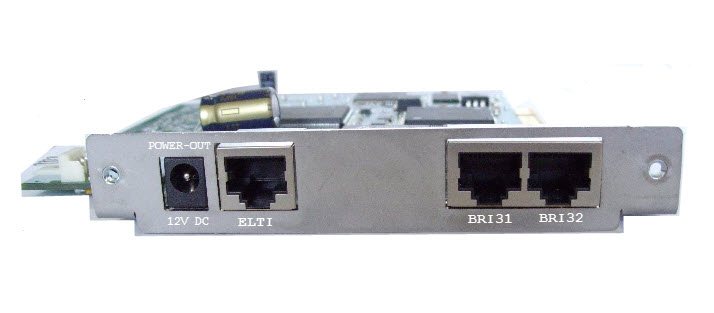

Figure 2.35. BSE26 2B1L

BSE26 2B1L

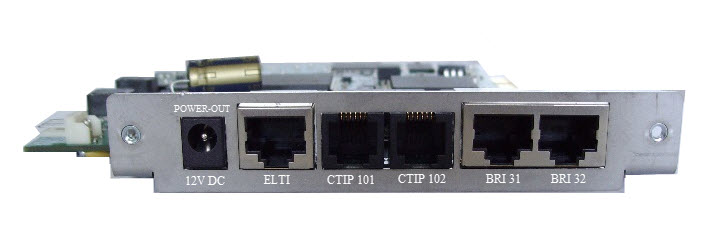

Figure 2.36. BSE26 2B2S1L

BSE26 2B2S1L

Table 2.15. BSE26 2B2S1L– BRI RJ45 pinout (Physical TE)

PinSignal
1N.C.
2N.C.
3Tx + (outbound)
4Rx + (inbound)
5Rx - (inbound)
6Tx - (outbound)
7N.C.
8N.C.

2.10.9.3. BSE28

The BSE28 is a PCI card equipped with 1xRJ45 connector for Abilis proprietary ELTI (External LVDS TDM interface) interface, 2X or 4X POTS ports and POWER-OUT connector useful to supply POTSBOX. The ELTI interface is used to connect the POTSBOX chassis which offers up to 32 POTS interfaces.

[Note]Note

The BSE28 is supported starting from Abilis firmware version 7.9.

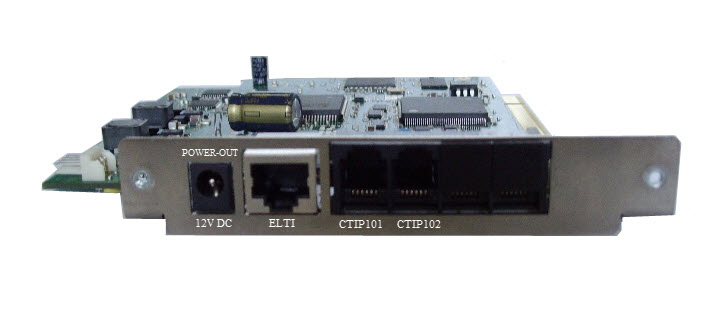

Figure 2.37. BSE28 2S1L

BSE28 2S1L

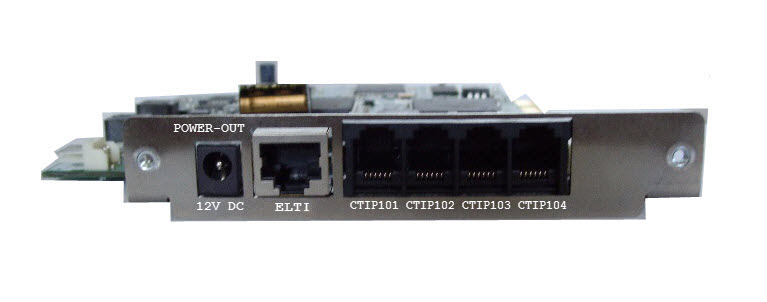

Figure 2.38. BSE28 4S1L

BSE28 4S1L

2.10.9.4. BSE29

The BSE29 is a PCI card equipped with 1xRJ45 connector for Abilis proprietary ELTI (External LVDS TDM interface) interface, 4X ISDN Basic Ports (ISDN-BRI) and POWER-OUT connector useful to supply POTSBOX. The ELTI interface is used to connect the POTSBOX chassis which offers up to 32 POTS interfaces.

[Note]Note

The BSE29 is supported starting from Abilis firmware version 7.9.

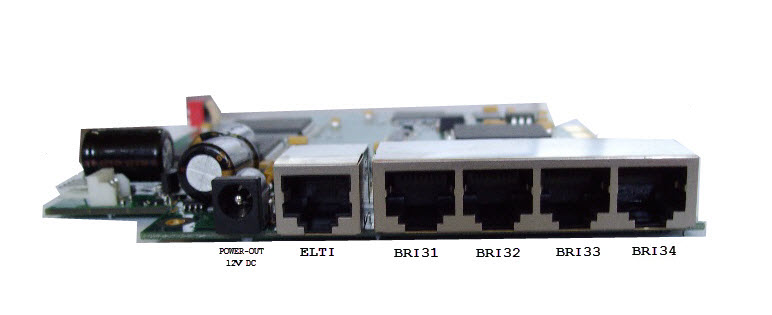

Figure 2.39. BSE29

BSE29

Table 2.16. BSE26 2B2S1L– BRI RJ45 pinout (Physical TE)

PinSignal
1N.C.
2N.C.
3Tx + (outbound)
4Rx + (inbound)
5Rx - (inbound)
6Tx - (outbound)
7N.C.
8N.C.

2.10.10. POTSHUB

The POTSHUB is a PCI card equipped with 1xH.100 connector (internal) and 4xRJ45 connectors (external) for Abilis proprietary ELTI (External LVDS TDM interface) interface. The ELTI interface is used to connect the POTSBOX chassis which offers up to 32 POTS interfaces. Up to 4 POTSBOX can be connected to a POTSHUB card, and up to 3 POTSHUB card can be installed for a maximal of 384 POTS ports.

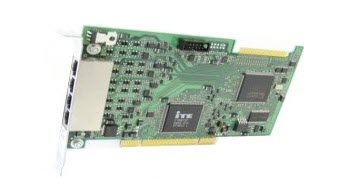

Figure 2.40. POTSHUB

POTSHUB

[Note]Note

The POTSHUB is supported starting from Abilis firmware version 7.2.

2.10.11. Ethernet

The Ethernet card provides a Fast Ethernet interface with Auto-Mode (10–100 Mbps) and Auto-TP (signal polarity) features. Several Ethernet cards can be installed into the same CPX.

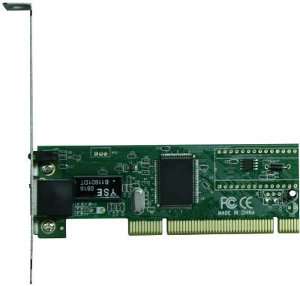

Figure 2.41. Ethernet card

Ethernet card

2.10.11.1. Physical specifications

Dimensions[mm]: 112x41;

Weight: 0.04Kg.

2.10.12. GigaEthernet

The GigaEthernet card provides a Gigabit Ethernet interface with Auto-Mode (10/100/1000 Mbps) and Auto-TP (signal polarity) features. Several GigaEthernet cards can be installed into the same CPX.

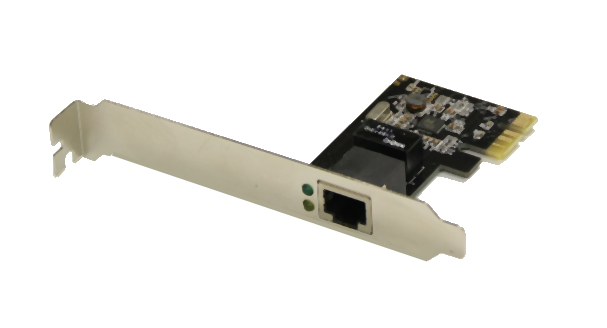

Figure 2.42. Gigabit Ethernet

Gigabit Ethernet

2.10.13. QUAD-Ethernet

The QUAD-Ethernet card provides a 4 Fast Ethernet interface with Auto-Mode (10–100 Mbps) and Auto-TP (signal polarity) features. Several QUAD-Ethernet cards can be installed into the same CPX.

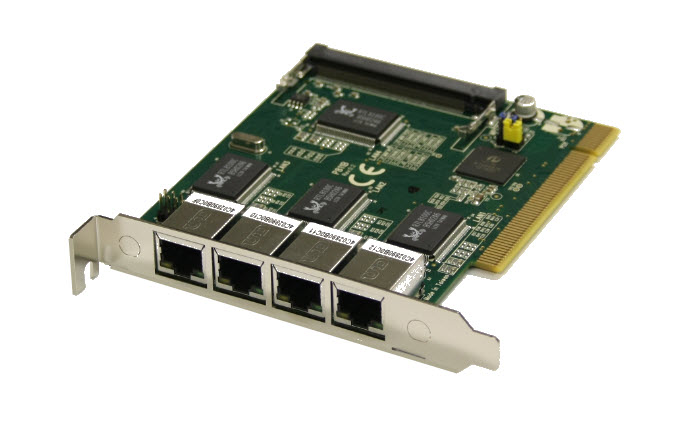

Figure 2.43. Quad-Ethernet

Quad-Ethernet

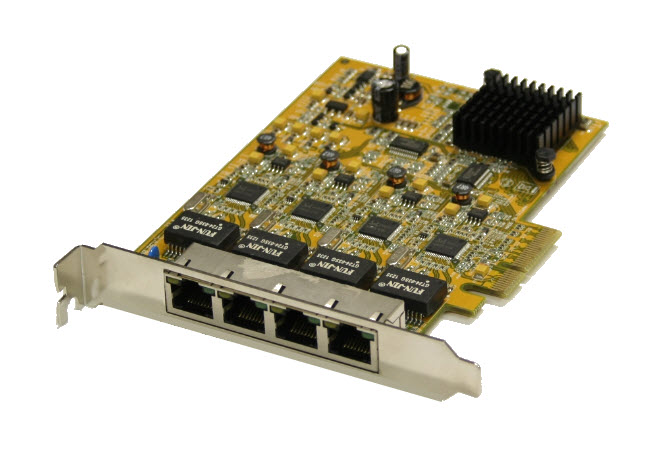

Figure 2.44. Quad-Ethernet PCI Express

Quad-Ethernet PCI Express
