39.3. Configuring New Packet Voice Link (NPVL)

To set up a NPVL, first add a NPV resource with the command:

a res:npv

[12:45:19] ABILIS_CPX:a res:npv

COMMAND EXECUTED

[12:45:23] ABILIS_CPX:d p npv

RES:NPv - Not Running, Not Saved (SAVE CONF) ----------------------------------
       ------------------------------------------------------------------------
       DESCR:
       LOG:DS         ACT:YES             NPVLOG:DFT         npvlogsize:200
       LOCPORT:38383                      REMPORT:38383
       BCKRES:CtiSLink                    max-bck:10         MTU:750
       INBUF:AUTO     INBUF-LINK:AUTO
       V-TOS:0-D      C-TOS:0-D           V-TOUT:10          V-RED:NONE
       LOCIP1:OUT-IP                      LOCIP2:OUT-IP
       - Link-Check -----------------------------------------------------------
       TRY:5          TOUT:5000                              BURST:1
       DLY-UP:10      DLY-TOUT:3          THR-DN:30          BURST-DLY:100
       - Back-Up --------------------------------------------------------------
       TI:ALL,00:00-23:59                 BOOT-DLY:NO        DOWN-DLY:NO
       RTY:LIN        NRTY:0              TB:3               AC:DOD
       VDT:10
[Warning]Warning

Save the configuration with the command save conf and restart the Abilis with the command warm start.

Then create a NPVL with the command:

a npvl id:<value>

id is the NPVL identification number that corresponds to the CTIL number that will use this NPVL.

The NPVL configuration includes all the parameter of CTIL, which are then configured in NPVL instead of CTIL.

[Note]Note

If a CTIL with ID:x is already referencing an old PV it isn't possible to use ID:x for NPVL.

[12:49:36] ABILIS_CPX:a npvl id:1

COMMAND EXECUTED

[12:49:46] ABILIS_CPX:d npvl id:1

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
1    NONE        NOMAX           NOMAX     NONE
        PEER                                                          NO   NO
        SYS             #                  SYS             #
-------------------------------------------------------------------------------

[12:49:50] ABILIS_CPX:d ctil

- Not Saved (SAVE CONF) -------------------------------------------------------
Configured Links:1

ID:  RES:       CLUS:    MAXBW:     MAXCON: GROUP: (GROUP-MAXBW: GROUP-MAXCON:)
-------------------------------------------------------------------------------
   1 NPv        (See NPVL ID:1)

[12:49:50] ABILIS_CPX:
[Warning]Warning

Save the configuration with the command save conf and init the resource with the command init res:npv.

Only a certain number of NPVL can be activated without restarting the Abilis, the value of the highest activable NPVL is indicated by the Activated Links values.

For example Activated Links:8 means that NPVL from 1 to 8 have been pre-loaded and can be activated with an init res:npv or init ctisys command.

[Note]Note

If a NPVL with ID > Activated Links is configured a reboot is required.

a npvl id:9

[12:55:45] ABILIS_CPX:a npvl id:9

WARNING, NPVL ID:9 IS NOT ACTIVE, A SYSTEM REBOOT IS NEEDED
COMMAND EXECUTED

[12:55:49] ABILIS_CPX:d npvl id:9

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:2         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
------------ Not Running Link(s), reboot required to activate them ------------
9    NONE        NOMAX           NOMAX     NONE
        PEER                                                          NO   NO
        SYS             #                  SYS             #
-------------------------------------------------------------------------------

[12:56:00] ABILIS_CPX:
[Warning]Warning

Save the configuration with the command save conf and restart the Abilis with the command warm start.

When we configure links into NPVL table, we can see its presence also into CTIL. For example:

[12:25:06] ABILIS_CPX:d ctil

Configured Links:4         Activated Links:8

ID:  RES:       CLUS:    MAXBW:     MAXCON: GROUP: (GROUP-MAXBW: GROUP-MAXCON:)
-------------------------------------------------------------------------------
   1 NPv        (See NPVL ID:1)
   2 NPv        (See NPVL ID:2)
   6 Ip-21      Line6         NOMAX   NOMAX   NONE
   7 Ip-22      Line7         NOMAX   NOMAX   NONE
[Warning]Warning

When an ID is added into NPVL or CTIL tables, it must not be already present in both of them.

[12:25:13] ABILIS_CPX:a npvl id:6

NPVL ID:6 needs CTIL ID:6 but it is already occupied
COMMAND NOT EXECUTED

[12:29:25] ABILIS_CPX:a ctil id:1

CTIL:1 is already occupied by NPVL ID:1
COMMAND NOT EXECUTED

Setting of CLUS: MAXBW: MAXCON: and GROUP: for NPV must be done into NPVL instead of CTIL.

[12:45:42] ABILIS_CPX:s npvl id:1 clus:line1

COMMAND EXECUTED

[12:45:50] ABILIS_CPX:d npvl id:1

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
1    line1       NOMAX           NOMAX     NONE
        PEER                                                          NO   NO
        SYS             #                  SYS             #
-------------------------------------------------------------------------------

39.3.1. Tunnel authentication

To establish a connection between 2 Abilis we must configure REMABILIS-ID or REMKEY or both. These parameters act as a filter for request coming from other Abilis.

When an Abilis tries to establish a connection, it sends to remote information about its ABILIS-ID and LOCKEY (if set). These values are checked for every NPVL present, and in case of match connection can be established. This procedure must be verified in both directions.

[Warning]Warning

Links with REMABILIS-ID:* and REMKEY:* are disabled.

To detect ABILIS-ID of the remote Abilis we can use the command:

d g

[13:02:24] ABILIS_2:d g

----------+----------------+----------------+----------------------------------
          |Configured Value|Active Value    |Description
----------+----------------+----------------+----------------------------------
tact:      YES              YES              TRACE activation at boot
TSAVE:     YES              YES              Automatic TRACE saving
sound:     ON               ON               Alarm sound enable/disable
dbgsize:   20               20               Debug Log size (in Kibyte)
listitems: 4000  (   630 K) 4000  (   630 K) Number of CPX lists items
stackovh:  0                0                Thread stack overhead (in byte)
-------------------------------------------------------------------------------

TIMEZONE:  CET - Central Europe (Rome, Paris, Berlin, Prague, Brussels)
SYSRBDELAY:# (System reboot delay not set)
SYSRBCOND: # (System reboot condition not set)
SYSNAME:
LOCATION:
CONTACT:
MAIL-FROM: AUTO (AbilisCPX <AbilisCPX@abilis>)
DBGF:      ALL
DBGSYSLOG: ALL

SYSUPTIME: 0 days 01:51:37 (Friday 05/06/2015 14:03:56)             <Read Only>
DATE&TIME: Friday 05/06/2015 15:55:33 (UTC+2.00)                    <Read Only>
CPU:       1                                                        <Read Only>
HWINT:     MFPCIGT                                                  <Read Only>
ABILIS-ID: 800733                                                   <Read Only>

To set REMABILIS-ID and REMKEY we use the commands:

s npvl id:<id> remabilis-id:<nnn>

s npvl id:<id> remkey:<mmm>

[13:09:40] ABILIS_CPX:s npvl id:1 remabilis-id:800733 remkey:12345

COMMAND EXECUTED

[13:10:05] ABILIS_CPX:d npvl id:1

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
1    linea1      NOMAX           NOMAX     NONE
        PEER     800733          12345                                NO   NO
        SYS             #                  SYS             #
-------------------------------------------------------------------------------

To set LOCKEY we use the command:

s npvl id:<id> lockey:<nnn>

[13:09:40] ABILIS_CPX:s npvl id:1 remabilis-id:800733 lockey:54321

COMMAND EXECUTED

[13:10:05] ABILIS_CPX:d npvl id:1

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
1    linea1      NOMAX           NOMAX     NONE
        PEER     800733          12345     54321                      NO   NO
        SYS             #                  SYS             #
-------------------------------------------------------------------------------

39.3.2. IP Packet Voice over IP

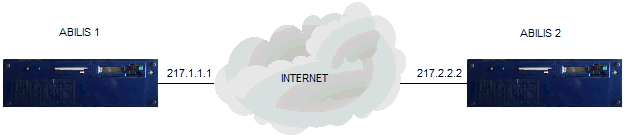

The following example considers two Abilis with a static public IP address each one.

  • IP address of “Abilis 1” (ABILIS_CPX_1): 217.1.1.1

  • IP address of “Abilis 2” (ABILIS_CPX_2): 217.2.2.2

First, add a new link on both Abilis:

[15:23:31] ABILIS_CPX_1:a npvl id:1

COMMAND EXECUTED

[15:23:34] ABILIS_CPX_1:d npvl

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
1    NONE        NOMAX           NOMAX     NONE
        PEER                                                          NO   NO
        SYS             #                  SYS             #
-------------------------------------------------------------------------------
[16:28:41] ABILIS_CPX_2:a npvl id:1

COMMAND EXECUTED

[16:28:44] ABILIS_CPX_2:d npvl

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
1    NONE        NOMAX           NOMAX     NONE
        PEER                                                          NO   NO
        SYS             #                  SYS             #
-------------------------------------------------------------------------------
[Warning]Warning

Save the configuration with the command save conf and initialize the NPV port with the command init res:npv.

Extended display is also present:

[15:29:05] ABILIS_CPX_1:d npvle id:1

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

ID:1    ACT:YES        LOG:SYS
        CLUS:NONE      MAXBW:NOMAX       MAXCON:NOMAX    GROUP:NONE
        ROLE:PEER      BCK:NO            CR:NO
        REMABILIS-ID:                    REMKEY:
        REMPORT:SYS                      LOCKEY:
        LOCIP1:SYS                       REMIP1:#
        LOCIP2:SYS                       REMIP2:#
        V-TOS:SYS      C-TOS:SYS         V-TOUT:SYS      V-RED:SYS
        - Link-Check ----------------------------------------------------------
        LC-VALUES:SYS

The most important parameters to configure are:

  • CLUS: CTI Cluster name.

  • ROLE: Role for link behavior.

  • REMABILIS-ID: Abilis-ID that must match the one provided by the remote peer.

  • REMKEY: Identification key that must match the one provided by the remote peer.

  • LOCKEY: Identification key to send to remote peer.

  • LOCIP1: IP address of the first path in local Abilis.

  • REMIP1: IP address of the first path in remote Abilis.

[Tip]Tip

The above parameters must mirror each other (i.e. The value of LOCKEY on “Abilis 1” must be the same of REMKEY on “Abilis 2” and vice versa; the same for LOCIP1/REMIP1).

[Tip]Tip

Some parameters are configured as SYS. This means that value is taken directly from NPV port.

[15:43:09] ABILIS_CPX_1:s npvl id:1 clus:line1 role:peer remabilis-id:2222 remkey:12345 lockey:54321 locip1:217.1.1.1 remip1:217.2.2.2

COMMAND EXECUTED

[15:43:17] ABILIS_CPX_1:d npvl id:1

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
1    line1       NOMAX           NOMAX     NONE
        PEER     2222            12345             54321              NO   NO
        217.001.001.001 217.002.002.002    SYS             #
-------------------------------------------------------------------------------
[16:44:29] ABILIS_CPX_2:s npvl id:1 clus:line1 role:peer remabilis-id:1111 remkey:54321 lockey:12345 locip1:217.2.2.2 remip1:217.1.1.1

COMMAND EXECUTED

[16:44:37] ABILIS_CPX_2:d npvl id:1

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
1    line1       NOMAX           NOMAX     NONE
        PEER     1111            54321             12345              NO   NO
        217.002.002.002 217.001.001.001    SYS             #
-------------------------------------------------------------------------------

Now the configuration of the VPN is completed.

39.3.3. IP Packet Voice - Client/Server Mode

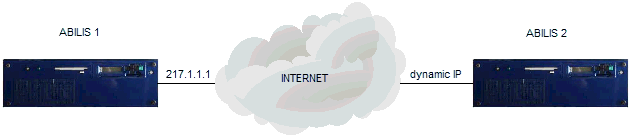

This mode is useful to configure a VPN between two Abilis when one of them hasn't a static public IP address or is placed behind a router doing NAT/PAT.

Consider an Abilis with a static public IP address and the other one with a dynamic public IP address:

  • IP address of “Abilis 1” (ABILIS_CPX_1): 217.1.1.1

  • IP address of “Abilis 2” (ABILIS_CPX_2): dynamic

ABILIS 1” will be set as SERVER; “ABILIS_CPX_2” will be set as CLIENT.

First, add a new link on both Abilis:

[15:23:31] ABILIS_CPX_1:a npvl id:1

COMMAND EXECUTED

[15:23:34] ABILIS_CPX_1:d npvl

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
1    NONE        NOMAX           NOMAX     NONE
        PEER                                                          NO   NO
        SYS             #                  SYS             #
-------------------------------------------------------------------------------
[16:28:41] ABILIS_CPX_2:a npvl id:1

COMMAND EXECUTED

[16:28:44] ABILIS_CPX_2:d npvl

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
1    NONE        NOMAX           NOMAX     NONE
        PEER                                                          NO   NO
        SYS             #                  SYS             #
-------------------------------------------------------------------------------

The most important parameters to configure are:

  • CLUS: CTI Cluster name.

  • ROLE: Role for link behavior.

  • REMABILIS-ID: Abilis-ID that must match the one provided by the remote peer.

  • REMKEY: Identification key that must match the one provided by the remote peer.

  • LOCKEY: Identification key to send to remote peer.

  • LOCIP1: IP address of the first path in local Abilis.

  • REMIP1: IP address of the first path in remote Abilis.

[Tip]Tip

The above parameters must mirror each other (i.e. The value of LOCKEY on “Abilis 1” must be the same of REMKEY on “Abilis 2” and vice versa).

[Tip]Tip

Some parameters are configured as SYS. This means that value is taken directly from NPV port.

[15:43:09] ABILIS_CPX_1:s npvl id:1 clus:line1 role:server remabilis-id:2222 remkey:12345 lockey:54321 locip1:217.1.1.1 remip1:*

COMMAND EXECUTED

[15:43:17] ABILIS_CPX_1:d npvl id:1

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
1    line1       NOMAX           NOMAX     NONE
        SERVER   2222            12345             54321              NO   NO
        217.001.001.001 *                  SYS             #
-------------------------------------------------------------------------------
[16:44:29] ABILIS_CPX_2:s npvl id:1 clus:line1 role:client remabilis-id:1111 remkey:54321 lockey:12345 locip1:out-ip remip1:217.1.1.1

COMMAND EXECUTED

[16:44:37] ABILIS_CPX_2:d npvl id:1

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
1    line1       NOMAX           NOMAX     NONE
        CLIENT   1111            54321             12345              NO   NO
        OUT-IP          217.001.001.001    SYS             #
-------------------------------------------------------------------------------
[Tip]Tip

The * value on REMIP1 of “Abilis 1” means that it can accept any IP because remote Abilis has a dynamic IP address.

[Tip]Tip

The OUT-IP value on LOCIP1 of “Abilis 2” means that it's used the IP address of the IP resource through which the packet is sent out. It's mandatory because Abilis has a dynamic IP address.

Now the configuration of the VPN is completed.

39.3.4. IP-BCK Packet Voice - Peer Mode with ISDN backup

In case of failure of the permanent VPN connection, the Abilis tunnels may be instantaneously switched onto ISDN backup lines.

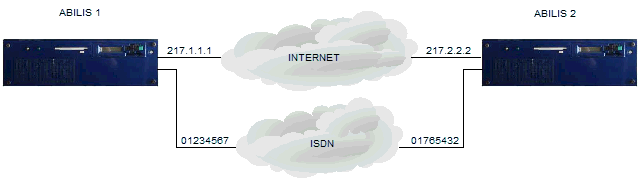

The following example considers two Abilis placed in remote sides, with a static public IP address and a backup ISDN line each one:

  • IP address of “Abilis 1” (ABILIS_CPX_1): 217.1.1.1

  • ISDN line connected to “Abilis 1” (ABILIS_CPX_1): 01234567

  • IP address of “Abilis 2” (ABILIS_CPX_2): 217.2.2.2

  • ISDN line connected to “Abilis 2” (ABILIS_CPX_2): 01765432

First, add a new link on both Abilis and than enable backup feature:

[15:23:31] ABILIS_CPX_1:a npvl id:1

COMMAND EXECUTED

[15:23:34] ABILIS_CPX_1:s npvl id:1 bck:yes

COMMAND EXECUTED

[15:23:44] ABILIS_CPX_1:d npvl

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
1    NONE        NOMAX           NOMAX     NONE
        PEER                                                          NO   YES
        SYS             #                  SYS             #
        *                        #                         SYS
        *                        #                         SYS
        *                        #                         SYS
        DISABLED                 #
-------------------------------------------------------------------------------
[16:34:11] ABILIS_CPX_2:a npvl id:1

COMMAND EXECUTED

[16:34:24] ABILIS_CPX_2:s npvl id:1 bck:yes

COMMAND EXECUTED

[16:34:34] ABILIS_CPX_2:d npvl

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
1    NONE        NOMAX           NOMAX     NONE
        PEER                                                          NO   YES
        SYS             #                  SYS             #
        *                        #                         SYS
        *                        #                         SYS
        *                        #                         SYS
        DISABLED                 #
-------------------------------------------------------------------------------

IP configuration of both Abilis remains the same shown in Section 39.3.2, “IP Packet Voice over IP”.

The configuration of ISDN backup is realized in the Back-Up section. Generally, the following fields are used:

  • SGI: Input calling sub-address.

  • SGO: Output calling sub-address.

  • CDO: Output called number (ISDN of remote side).

SGI and SGO are special ISDN's fields where users can insert an alphanumeric string. Abilis uses them as a sort of password to discriminate the backup calls: the field SGO of local Abilis is “inserted” in outgoing calls and verified in the SGI field on remote Abilis and vice versa (the values of SGI and SGO on both Abilis must mirror each other).

Other interesting parameters are:

  • RTY: it allows to select the backup calls repetition rule;

    Table 39.3. Rules of call repetition on failure

    ValueCalls repetition rules
    LINThe time interval between a call attempt and the next one is fixed and configurable through the parameter TB
    INCThe time interval between a call attempt and the next one, is doubled at every attempt, starting with the value defined in the parameter TB
    USThe abbreviation US stands for “unattended site”. In this case the S-Link channel driver activates the following procedure until success: 1. The driver executes a number of tries equal to the value of the parameter NRTY: every TB seconds, or until three consecutive “link-check” errors occur; 2. The driver makes 8 calls every 15 minutes; 3. The driver makes 4 calls every 1 hour; 4. The driver makes 9 calls every 2 hours; 5. The driver makes 8 calls every 6 hours; 6. The driver is placed in the state STOPPED1 or STOPPED2 caused by the last error; This procedure allows an “automatic recovery” from critical situations within three days from the first failure occurrence, afterwards a maintenance intervention is required.

  • NRTY: it specifies the maximum number of backup call repetitions

  • TB: it defines the “base” time interval that the retry procedure set in RTY: uses to calculate the delay between a call attempt that fails and the next one

  • AC: configures the autoconnection mode [DOD, NAILED-UP]

    • DOD: the B-channel is connected using dial-on-demand rules.

    • NAILED-UP: the B-channel is spontaneously connected at boot, and reconnected in case of drop for any reason.

[16:03:00] ABILIS_CPX_1:s npvl id:1 clus:line1 locip1:217.1.1.1 remip1:217.2.2.2 remabilis-id:1111 remkey:54321 lockey:12345

COMMAND EXECUTED

[16:12:40] ABILIS_CPX_1:s npvl id:1 rty:us nrty:30 tb:10 sgi:abilis1-abilis2 sgo:abilis2-abilis1 cdo:01765432

COMMAND EXECUTED

[16:14:19] ABILIS_CPX_1:d npvl id:1

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
1    line1       NOMAX           NOMAX     NONE
        PEER     1111            54321             12345              NO   YES
        217.001.001.001 217.002.002.002    SYS             #
        *                        01765432                  US
        *                        #                         30
        *                        #                         SYS
        ABILIS1-ABILIS2          ABILIS2-ABILIS1
-------------------------------------------------------------------------------
[16:33:00] ABILIS_CPX_2:s npvl id:1 clus:line1 locip1:217.2.2.2 remip1:217.1.1.1 remabilis-id:2222 remkey:12345 lockey:54321

COMMAND EXECUTED

[16:42:20] ABILIS_CPX_2:s npvl id:1 rty:us nrty:30 tb:10 sgi:abilis2-abilis1 sgo:abilis1-abilis2 cdo:01234567

COMMAND EXECUTED

[16:44:39] ABILIS_CPX_2:d npvl id:1

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
1    line1       NOMAX           NOMAX     NONE
        PEER     1111            54321             12345              NO   YES
        217.002.002.002 217.001.001.001    SYS             #
        *                        01234567                  US
        *                        #                         30
        *                        #                         SYS
        ABILIS2-ABILIS1          ABILIS1-ABILIS2
-------------------------------------------------------------------------------

Now the configuration of the VPN is completed.

39.3.5. IP Packet Voice - Peer mode with Double Path

Activating the ART (Abilis Redundant Tunneling) protocol, also named “Double Path”, can increase the reliability of the VPN.

[Tip]Tip

It's advisable to use ART ONLY with lines with the same speed. In fact, if ART is used with lines with different speed, packets are sent with a maximum speed equal to that one of the slower line.

Moreover, if a line is saturated, the entire Tunnel doesn't work properly!

[Warning]Warning

When the double path is active the traffic is obviously duplicated: this could be very “dangerous” on pay per use lines!

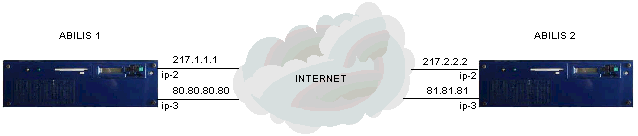

The following example considers two Abilis: each one has two different Internet lines with static public IP addresses.

  • First IP address of “Abilis 1” (ABILIS_CPX_1): 217.1.1.1

  • Second IP address of “Abilis 1” (ABILIS_CPX_1): 80.80.80.80

  • First IP address of “Abilis 2” (ABILIS_CPX_2): 217.2.2.2

  • Second IP address of “Abilis 2” (ABILIS_CPX_2): 81.81.81.81

First, add a new link on both Abilis:

[15:23:31] ABILIS_CPX_1:a npvl id:1

COMMAND EXECUTED

[15:23:34] ABILIS_CPX_1:d npvl

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
1    NONE        NOMAX           NOMAX     NONE
        PEER                                                          NO   NO
        SYS             #                  SYS             #
-------------------------------------------------------------------------------
[16:28:41] ABILIS_CPX_2:a npvl id:1

COMMAND EXECUTED

[16:28:44] ABILIS_CPX_2:d npvl

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
1    NONE        NOMAX           NOMAX     NONE
        PEER                                                          NO   NO
        SYS             #                  SYS             #
-------------------------------------------------------------------------------

New parameters to use are:

  • LOCIP2: second IP address that the local Abilis will use as “source address” for the path 2.

  • REMIP2: second IP address of the remote Abilis for the path 2.

Configuration of other parameters of both Abilis must mirror each other; see Section 39.3.2, “IP Packet Voice over IP”.

[15:43:09] ABILIS_CPX_1:s npvl id:1 clus:line1 role:peer remabilis-id:2222 remkey:12345 lockey:54321 locip1:217.1.1.1 remip1:217.2.2.2

COMMAND EXECUTED

[15:43:12] ABILIS_CPX_1:s npvl id:1 locip2:80.80.80.80 remip2:81.81.81.81

COMMAND EXECUTED

[15:43:17] ABILIS_CPX_1:d npvl id:1

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
1    line1       NOMAX           NOMAX     NONE
        PEER     2222            12345             54321              NO   NO
        217.001.001.001 217.002.002.002    80.80.80.80     81.81.81.81
-------------------------------------------------------------------------------
[16:44:29] ABILIS_CPX_2:s npvl id:1 clus:line1 role:peer remabilis-id:1111 remkey:54321 lockey:12345 locip1:217.2.2.2 remip1:217.1.1.1

COMMAND EXECUTED

[15:43:32] ABILIS_CPX_2:s npvl id:1 locip2:81.81.81.81 remip2:80.80.80.80

COMMAND EXECUTED

[16:44:37] ABILIS_CPX_2:d npvl id:1

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Links:1         Activated Links:8

-------------------------------------------------------------------------------
ID:  CLUS:       MAXBW:          MAXCON:   GROUP:  (GROUP-MAXBW: GROUP-MAXCON:)
ACT:    ROLE:    REMABILIS-ID:   REMKEY:           LOCKEY:            CR:  BCK:
        LOCIP1:         REMIP1:            LOCIP2:         REMIP2:
        CDI:                     CDO:                      RTY:
        CGI:                     CGO:                      NRTY:
        SDI:                     SDO:                      AC:
        SGI:                     SGO:
-------------------------------------------------------------------------------
1    line1       NOMAX           NOMAX     NONE
        PEER     1111            54321             12345              NO   NO
        217.002.002.002 217.001.001.001    81.81.81.81     80.80.80.80
-------------------------------------------------------------------------------

Now the configuration of the VPN is completed.
